Power Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

■ Open Circuit Inspection

  1. Ignition "OFF".
  2. Disconnect "ATM solenoid valve" connector and PCM/TCM connector.
  3. Measure resistance between power of ATM solenoid valve connector and power of PCM TCM connector.

    Specification:  Approx. 0 Ω

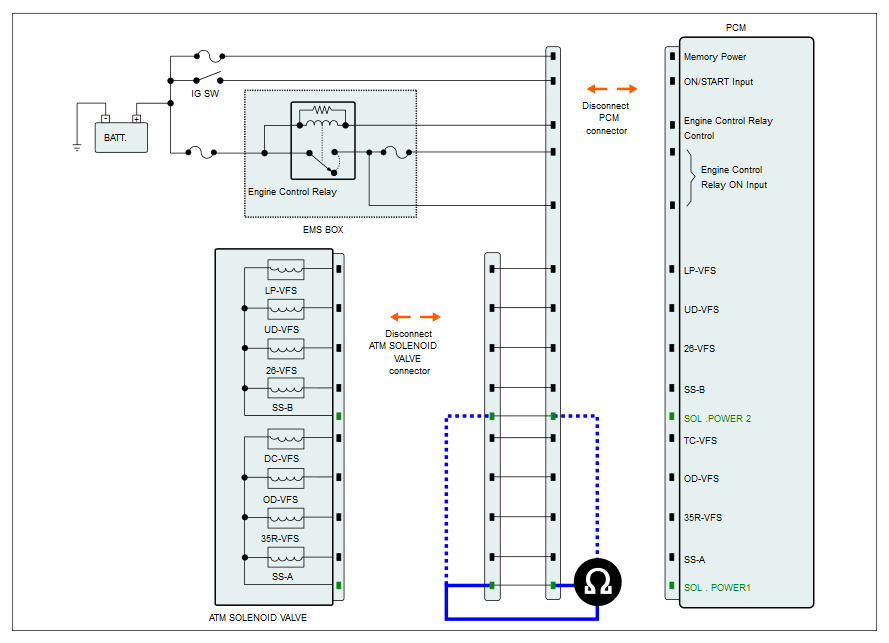

    Fig 1: Measuring Resistance Between Power Of ATM Solenoid Valve Connector And Power Of PCM/TCM Connector
    G10603643Courtesy of HYUNDAI MOTOR AMERICA

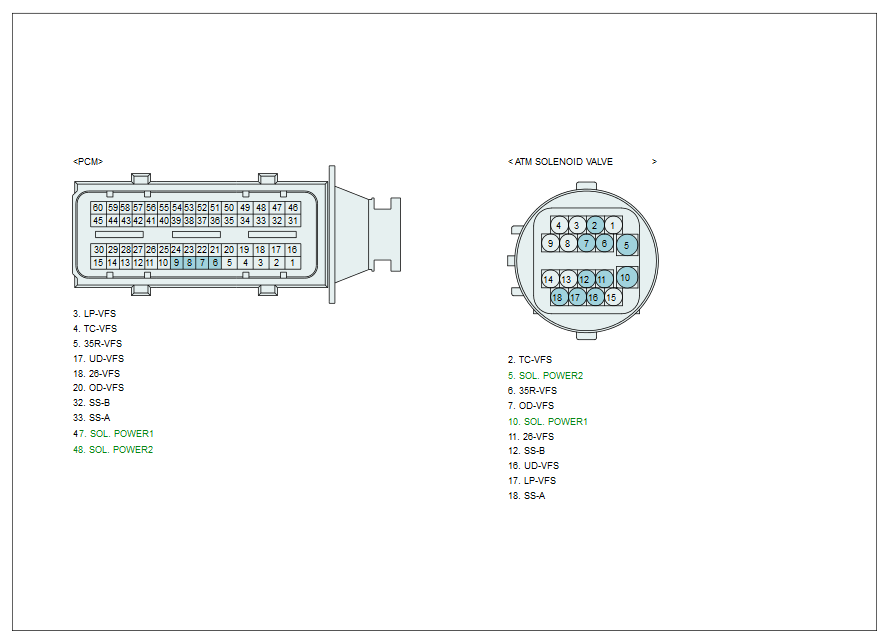

    Fig 2: Identifying ATM Solenoid Valve Connector Terminals
    G10603644Courtesy of HYUNDAI MOTOR AMERICA
  4. Is the measured resistance within specifications?

    YES

    • Go to "Circuit short Inspection" procedure below.

    NO

■ Short Circuit Inspection

  1. Ignition "OFF".
  2. Disconnect "ATM solenoid valve connector and PCM/TCM connector.
  3. Measure a resistance between power of ATM solenoid valve connector and chassis ground.

    Specification:  Infinite

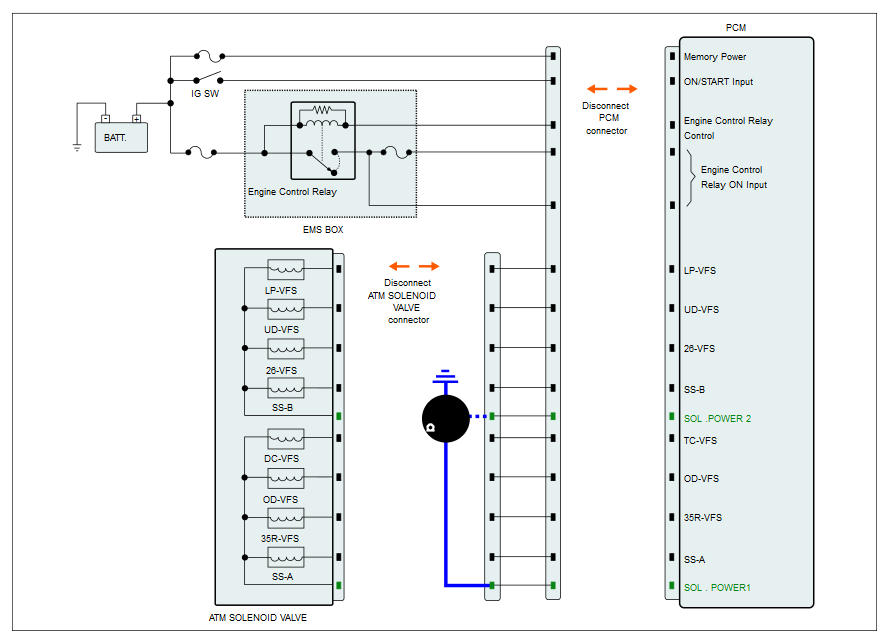

    Fig 3: Measuring Resistance Between Power Of ATM Solenoid Valve Connector And Chassis Ground
    G10603645Courtesy of HYUNDAI MOTOR AMERICA
    Fig 4: Identifying ATM Solenoid Valve Connector Terminals
    G10603536Courtesy of HYUNDAI MOTOR AMERICA
  4. Is the measured resistance within specifications?

    YES

    • Substitute with a known-good PCM/TCM and check for proper operation. If the problem is corrected, replace PCM/TCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO



■ Open Circuit Inspection

  1. Ignition "OFF".
  2. Disconnect "ATM solenoid valve" connector and PCM/TCM connector.
  3. Measure resistance between power of ATM solenoid valve connector and power of PCM TCM connector.

    Specification:  Approx. 0 Ω

  4. Is the measured resistance within specifications?

    YES

    • Go to "Circuit short Inspection" procedure below.

    NO

■ Short Circuit Inspection

  1. Ignition "OFF".
  2. Disconnect "ATM solenoid valve connector and PCM/TCM connector.
  3. Measure a resistance between power of ATM solenoid valve connector and chassis ground.

    Specification:  Infinite

  4. Is the measured resistance within specifications?

    YES

    • Substitute with a known-good PCM/TCM and check for proper operation. If the problem is corrected, replace PCM/TCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
