Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

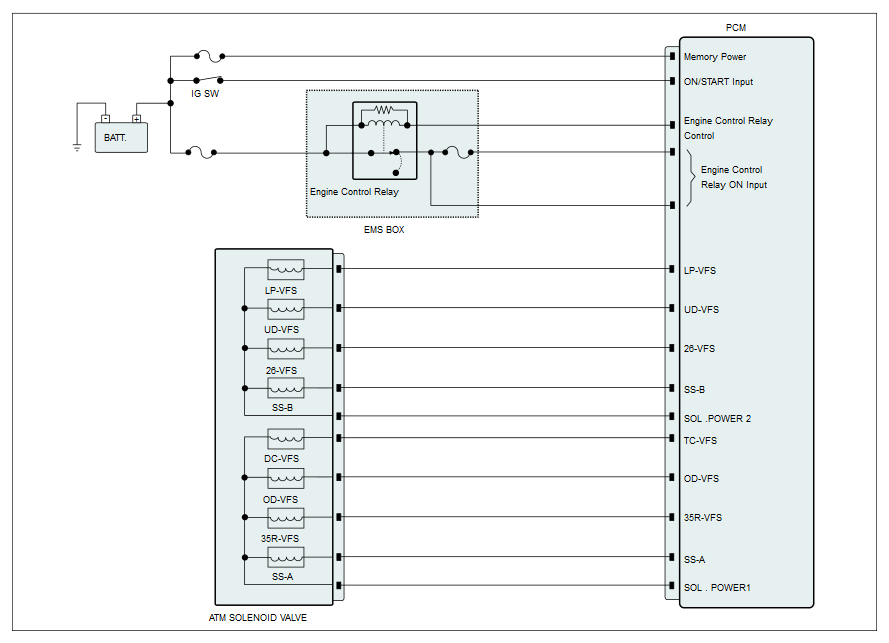

Fig 1: Identifying ATM Solenoid Valve Circuit Diagram
G10603641Courtesy of HYUNDAI MOTOR AMERICA

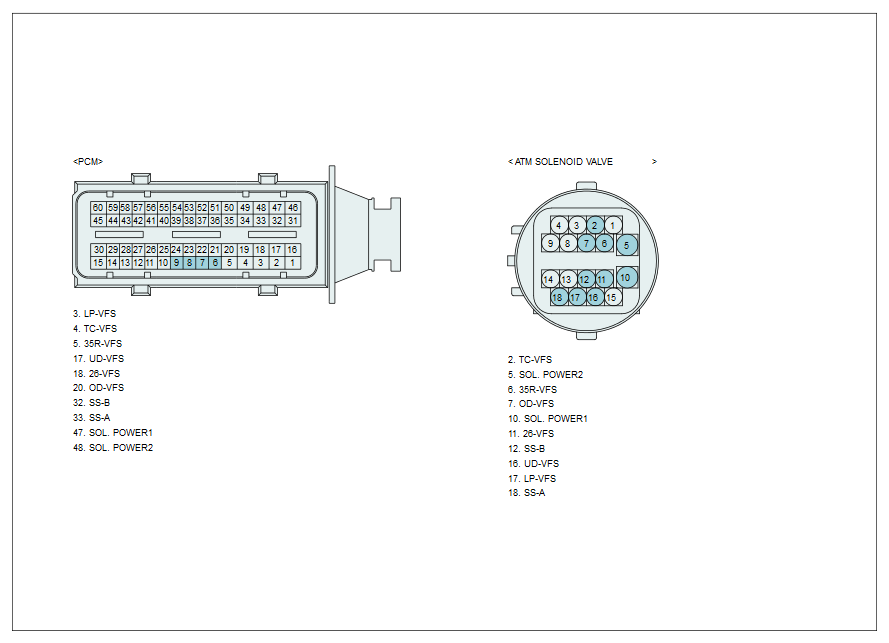

Fig 2: Identifying ATM Solenoid Valve Connector Terminals
G10603642Courtesy of HYUNDAI MOTOR AMERICA
