Power Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

Ignition "OFF".
Disconnect "ATM solenoid valve connector and PCM/TCM connector.
Measure resistance between power of "SS-A" connector of ATM solenoid valve and PCM/TCM connector.
Specification: Approx. 0 Ω

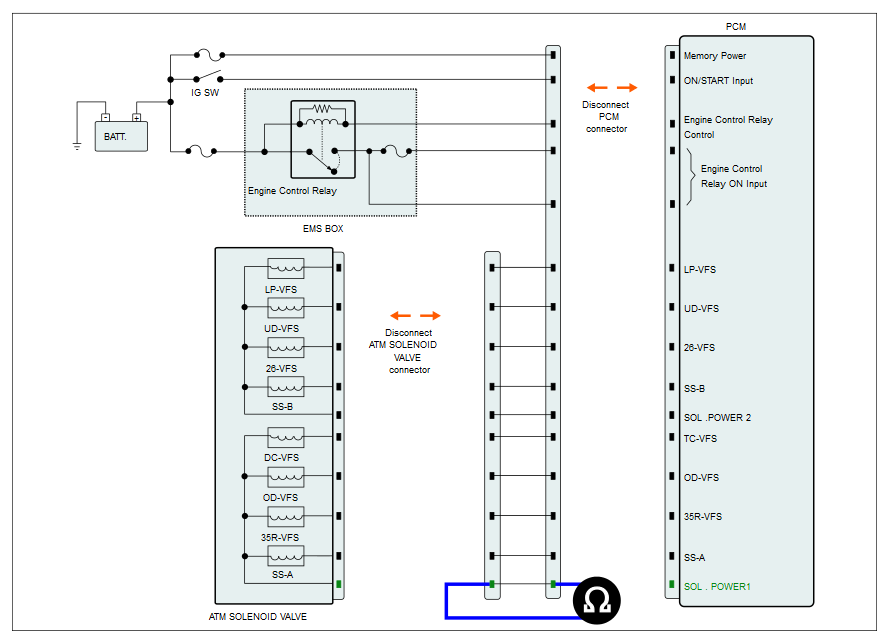

Fig 1: Measuring Resistance Between Power Of SS-A Connector Of ATM Solenoid Valve And PCM/TCM Connector
Courtesy of HYUNDAI MOTOR AMERICA

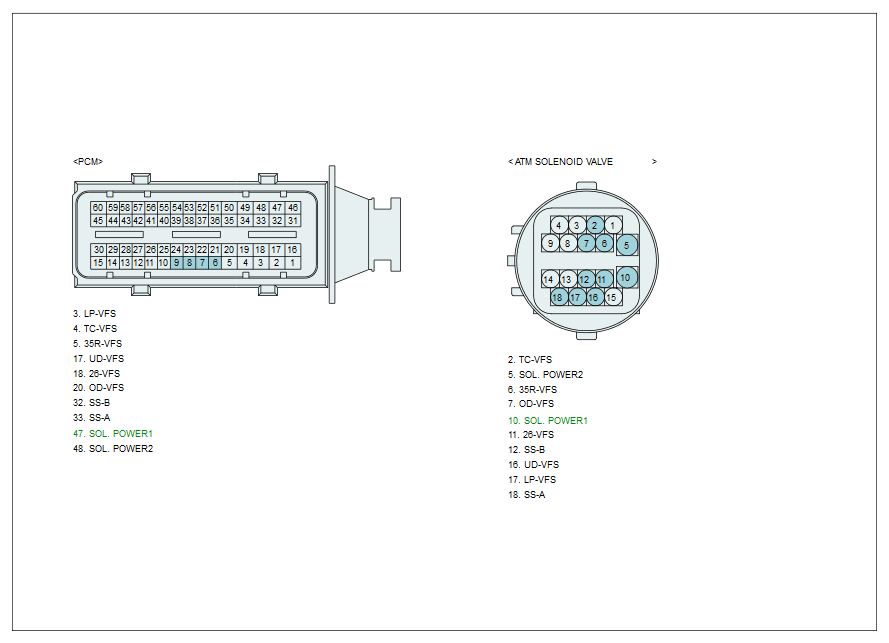

Fig 2: Identifying Shift Solenoid Valve Connector Terminals
Courtesy of HYUNDAI MOTOR AMERICA
Is the measured resistance within specifications?
YES
- Go to "SIGNAL CIRCUIT INSPECTION " procedure.
NO
- Check power circuit open and go to "VERIFICATION VEHICLE REPAIR " procedure.
