Component Inspection

■ Shift control solenoid valve (SS-A) Inspection

1. Ignition "OFF".
2. Disconnect "ATM solenoid valve connector.
3. Measure a resistance between "Shift control solenoid valve (SS-A)" terminal and power at ATM solenoid valve connector.

   Specification:  10 ~ 11 Ω (20°C) (68°F)

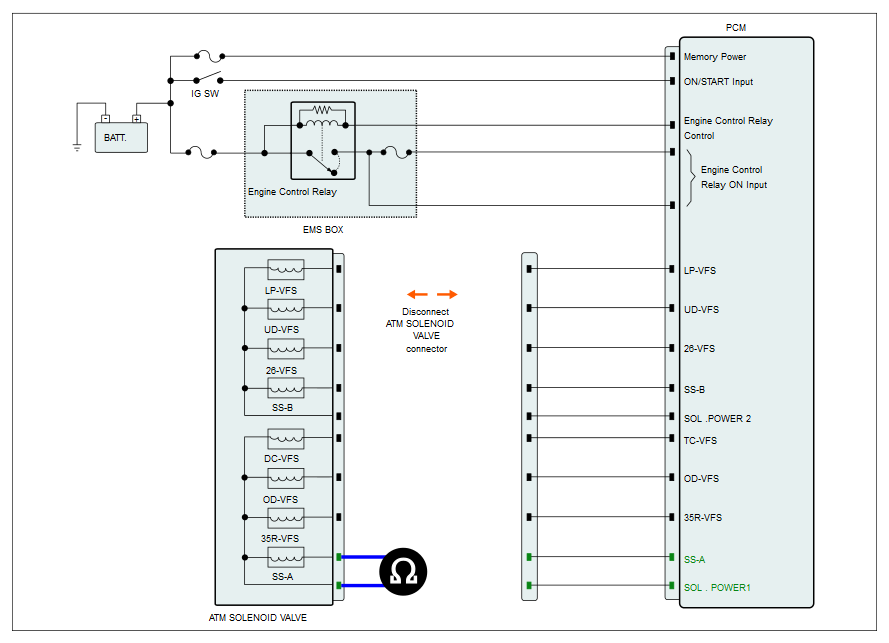

   Fig 1: Measuring Resistance Between Shift Control Solenoid Valve (SS-A) Terminal And Power At ATM Solenoid Valve Connector

   Courtesy of HYUNDAI MOTOR AMERICA

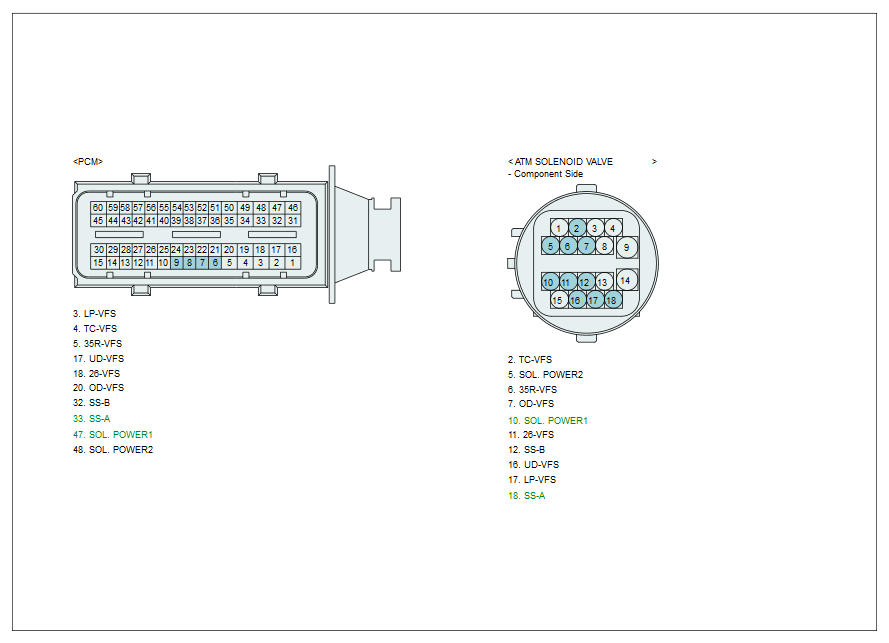

   Fig 2: Identifying Shift Solenoid Valve Connector Terminals

   Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured resistance within specifications?

   YES

   • Substitute with a known-good PCM/TCM and check for proper operation. If the problem is corrected, replace PCM/TCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Substitute with a known-good Shift control solenoid valve (SS-A) and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
