Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

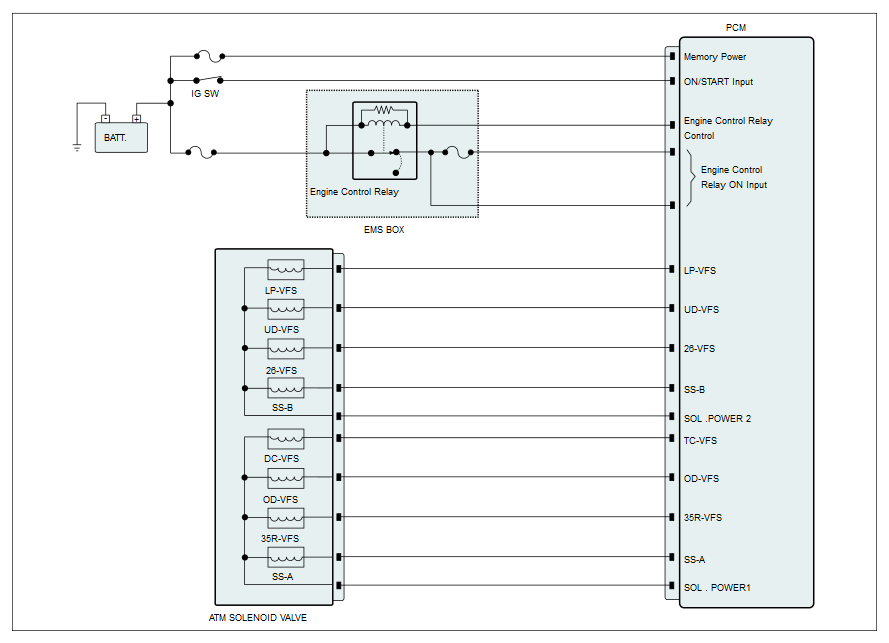

Fig 1: PCM/TCM Control OD-VFS Solenoid Valve Circuit Diagram
G10603601Courtesy of HYUNDAI MOTOR AMERICA

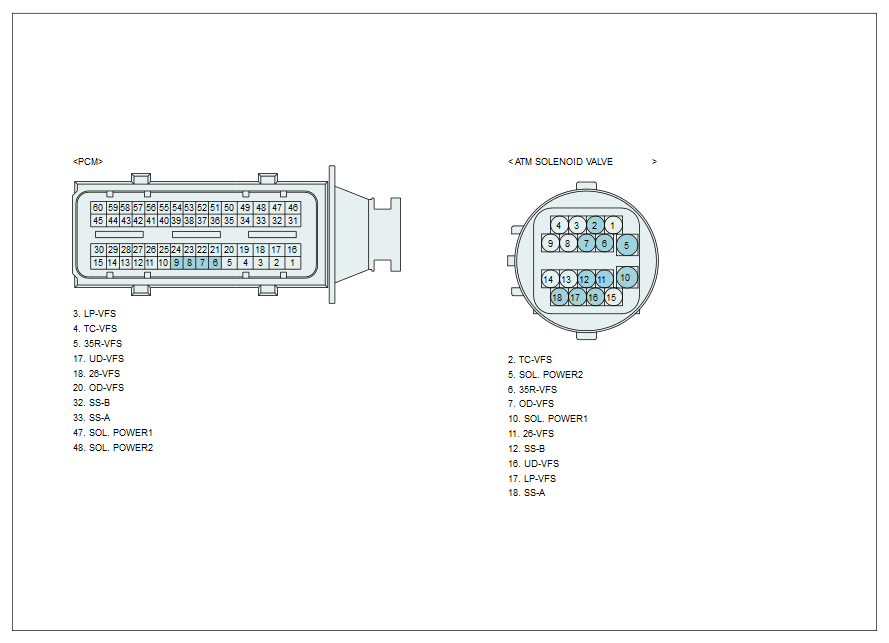

Fig 2: Identifying PCM/TCM Control OD-VFS Solenoid Valve Connector Terminals
G10603602Courtesy of HYUNDAI MOTOR AMERICA
