Section 65 (Automatic Transaxle System Diagnosis (HEV))
>>
DTC P0763: Shift Control Solenoid Valve 'C' Electrical (35R/C)
>>
General Information
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

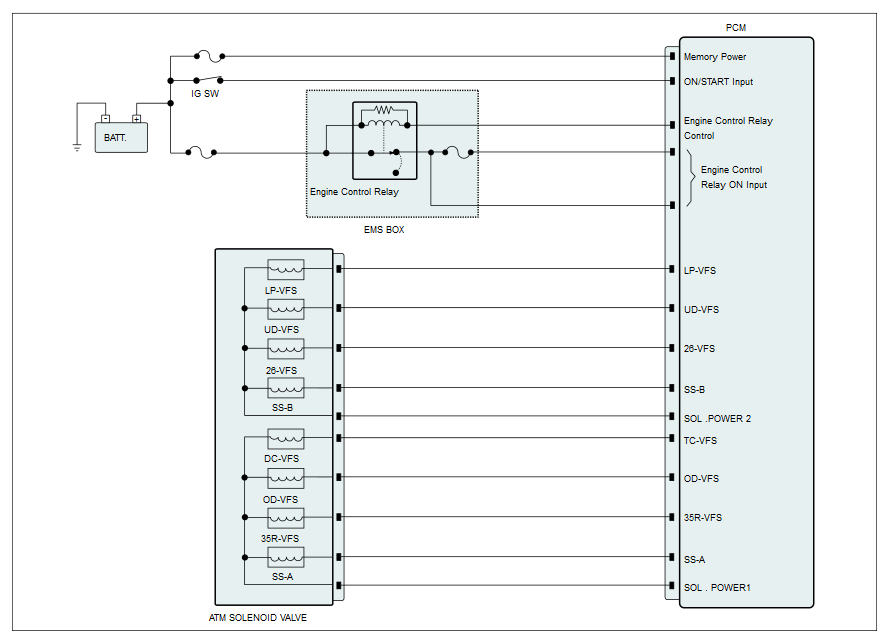

Fig 1: PCM/TCM Control 35R/C-VFS Solenoid Valve Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA

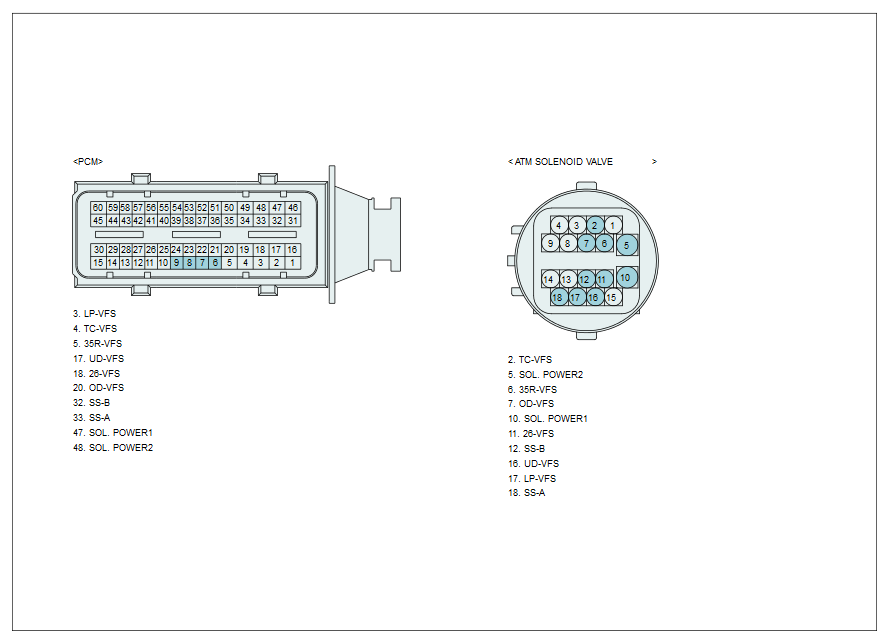

Fig 2: Identifying PCM/TCM Control 35R/C-VFS Solenoid Valve Connector Terminals
Courtesy of HYUNDAI MOTOR AMERICA
