Section 65 (Automatic Transaxle System Diagnosis (HEV))
>>
DTC P0753: Shift Control Solenoid Valve 'A' Electrical (UD/B)
>>
General Information
>>
Signal Waveform & Data
Signal Waveform & Data
WARNING:
This page is about a different variant/trim than selected.

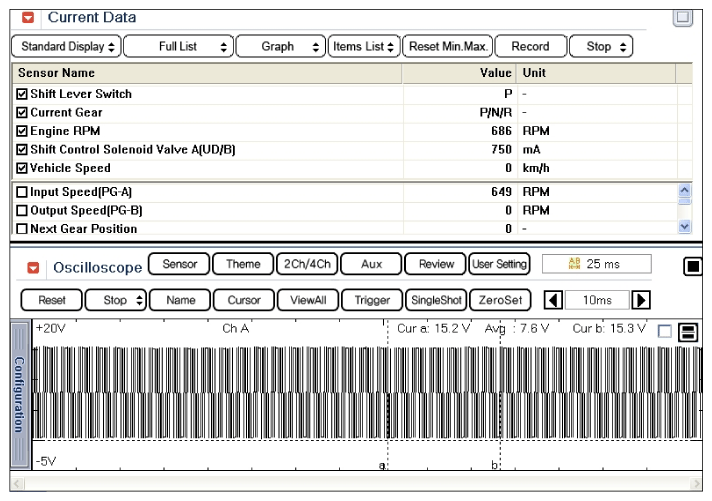

Fig 1: Scantool Display - Signal Waveform Of UD-VFS
Courtesy of HYUNDAI MOTOR AMERICA
