Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

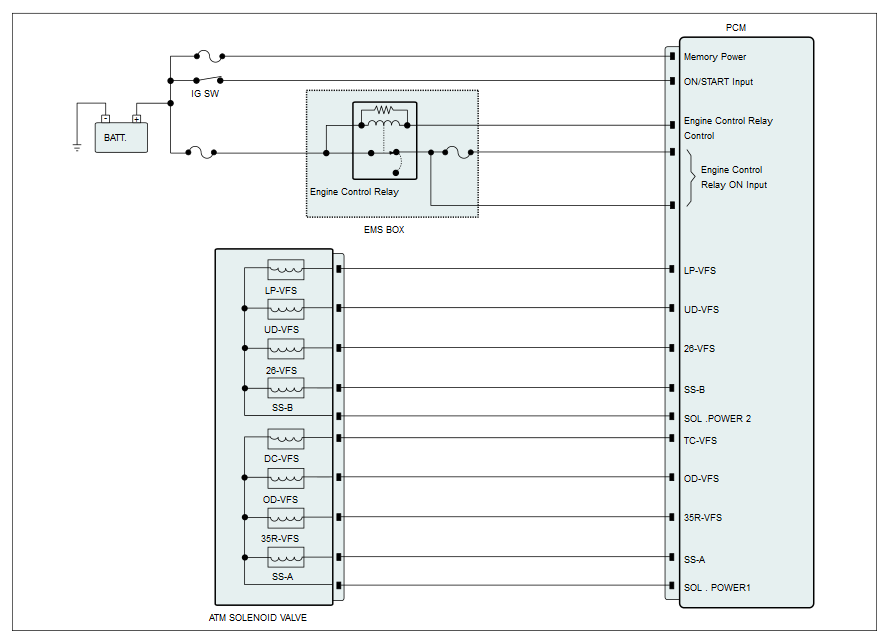

Fig 1: PCM/TCM Control Pressure Control Solenoid Valve Circuit Diagram
G10603521Courtesy of HYUNDAI MOTOR AMERICA

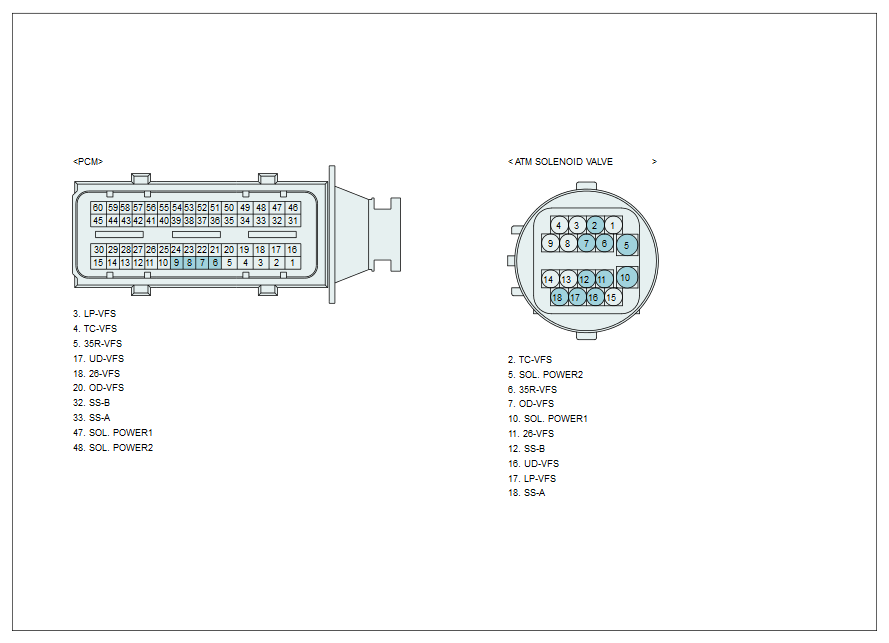

Fig 2: Identifying PCM/TCM Control Pressure Control Solenoid Valve Connector Terminals
G10603522Courtesy of HYUNDAI MOTOR AMERICA
