Component Inspection

WARNING: This page is about a different variant/trim than selected.

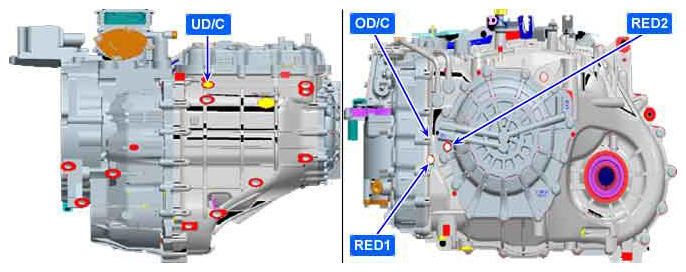

Fig 1: Locating UD/C, OD/C, RED1 And RED2 Ports

Courtesy of HYUNDAI MOTOR AMERICA

Connect oil pressure gage at "UD brake" port and "OD Clutch" port.
Engine ON.
Driving with 4th speed of gear at sports mode.

Check by below specific table.

Specification: See below specific table

Shift lever position	RPM	Solenoid current (mA)						ON/OFF Solenoid		Pressure (kgf/cm² )
Shift lever position	RPM	UD/B	OD/C	26-B	35R/C	LP	ENG-C	SS-A	SS-B	UD/C	OD/C	26/B	35R/C	LR/B	RED1	RED2	ENG/C
D1	2500	0	852	0	852	0	852	OFF	OFF	16.3±0.5	-	0.1 Under	-	-	5±0.3	5.5±0.3	16.3±0.5
↑	↑	700	↑	↑	↑	↑	↑	↑	↑	0.6~1.4	-	-	-	-	-	-	-
↑	↑	600	↑	↑	↑	↑	↑	↑	↑	2.6~3.2	-	-	-	-	-	-	-
↑	↑	500	↑	↑	↑	↑	↑	↑	↑	4.6~5.4	-	-	-	-	-	-	-
↑	EOP1300	0	852	0	852	0	352	↑	↑	-	-	-	-	-	-	-	1.0~1.8
↑	↑	↑	↑	↑	↑	↑	↑	↑	↑	-	-	-	-	-	-	-	2.4~3.0
D2	2500	0	852	852	852	0	852	OFF	OFF	15~17.5	-	16.3±0.5	0.03~0.4	-	5±0.3	5.5±0.3	15~17.5
↑	↑	↑	↑	352	↑	↑	↑	↑	↑	-	-	0.96~1.7	-	-	-	-	-
↑	↑	↑	↑	452	↑	↑	↑	↑	↑	-	-	2.7~3.3	-	-	-	-	-
↑	↑	↑	↑	552	↑	↑	↑	↑	↑	-	-	4.6~5.6	-	-	-	-	-
D3	↑	0	852	0	0	0	852	OFF	OFF	15~17.5	0.03~0.4	-	16.3±0.5	0.03~0.4	5±0.3	5.5±0.3	15~17.5
↑	↑	↑	↑	↑	700	↑	↑	↑	↑	-	-	-	0.4~1.2	-	-	-	-
↑	↑	↑	↑	↑	600	↑	↑	↑	↑	-	-	-	2.4~3.0	-	-	-	-
↑	↑	↑	↑	↑	500	↑	↑	↑	↑	-	-	-	4.3~5.1	-	-	-	-
D4	↑	0	0	0	852	0	852	OFF	OFF	15~17.5	15~17.5	-	-	-	5±0.3	5.5±0.3	15~17.5
↑	↑	↑	700	↑	↑	↑	↑	↑	↑	-	0.6~1.4	-	-	-	-	-	-
↑	↑	↑	652	↑	↑	↑	↑	↑	↑	-	2.1~2.7	-	-	-	-	-	-
D5	↑	852	0	0	0	0	852	OFF	ON	0.03~0.4	16.3±0.5	-	15~17.5	-	5±0.3	5.5±0.3	15~17.5
D6	↑	852	0	852	852	0	852	OFF	OFF	-	15~17.5	15~17.5	-	-	5±0.3	5.5±0.3	15~17.5
↑	↑	↑	↑	↑	↑	400	↑	↑	↑	-	12.5~13.5	-	-	-	-	-	-
↑	↑	↑	↑	↑	↑	852	↑	↑	↑	-	3.9~5.1	-	-	-	-	-	-
L	↑	0	0	0	852	0	852	ON	OFF	15~17.5	-	-	-	16.3±0.5	-	-	-
↑	600	↑	↑	↑	↑	↑	↑	↑	↑	Above 3.9	-	-	-	Above 3.9	5±0.3	5.5±0.3	Above 3.9
↑	EOP1100	↑	↑	↑	↑	↑	↑	↑	↑	Above 4.7	-	-	-	Above 4.7	5±0.3	5.5±0.3	Above 4.7
N	↑	852	0	0	852	0	852	ON	OFF	-	-	-	-	Above 6.0	5±0.3	5.5±0.3	Above 6.0
R	2500	852	852	0	0	0	852	OFF	ON	-	-	-	15~17.5	15~17.5	5±0.3	5.5±0.3	-

Is measured oil pressure value within specific?
YES
- Repair automatic transmission and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Repair automatic transmission (valve body) and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
