Component Inspection

WARNING: This page is about a different variant/trim than selected.

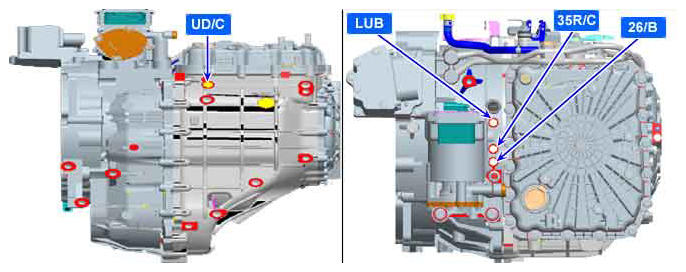

Fig 1: Locating UD/C, LUB, 35R/C And 26/B Ports

Courtesy of HYUNDAI MOTOR AMERICA

Connect oil pressure gage at "UD brake" port and "3/5/R brake" port.
Engine ON.
Driving with 3rd speed of gear at sports mode.

Check by below specific table.

Specification: See below specific table

Shift lever position	RPM	Solenoid current (mA)						ON/OFF Solenoid		Pressure (kgf/cm² )
Shift lever position	RPM	UD/B	OD/C	26-B	35R/C	LP	ENG-C	SS-A	SS-B	UD/C	OD/C	26/B	35R/C	LR/B	RED1	RED2	ENG/C
D1	2500	0	852	0	852	0	852	OFF	OFF	16.3±0.5	-	0.1 Under	-	-	5±0.3	5.5±0.3	16.3±0.5
↑	↑	700	↑	↑	↑	↑	↑	↑	↑	0.6~1.4	-	-	-	-	-	-	-
↑	↑	600	↑	↑	↑	↑	↑	↑	↑	2.6~3.2	-	-	-	-	-	-	-
↑	↑	500	↑	↑	↑	↑	↑	↑	↑	4.6~5.4	-	-	-	-	-	-	-
↑	EOP1300	0	852	0	852	0	352	↑	↑	-	-	-	-	-	-	-	1.0~1.8
↑	↑	↑	↑	↑	↑	↑	↑	↑	↑	-	-	-	-	-	-	-	2.4~3.0
D2	2500	0	852	852	852	0	852	OFF	OFF	15~17.5	-	16.3±0.5	0.03~0.4	-	5±0.3	5.5±0.3	15~17.5
↑	↑	↑	↑	352	↑	↑	↑	↑	↑	-	-	0.96~1.7	-	-	-	-	-
↑	↑	↑	↑	452	↑	↑	↑	↑	↑	-	-	2.7~3.3	-	-	-	-	-
↑	↑	↑	↑	552	↑	↑	↑	↑	↑	-	-	4.6~5.6	-	-	-	-	-
D3	↑	0	852	0	0	0	852	OFF	OFF	15~17.5	0.03~0.4	-	16.3±0.5	0.03~0.4	5±0.3	5.5±0.3	15~17.5
↑	↑	↑	↑	↑	700	↑	↑	↑	↑	-	-	-	0.4~1.2	-	-	-	-
↑	↑	↑	↑	↑	600	↑	↑	↑	↑	-	-	-	2.4~3.0	-	-	-	-
↑	↑	↑	↑	↑	500	↑	↑	↑	↑	-	-	-	4.3~5.1	-	-	-	-
D4	↑	0	0	0	852	0	852	OFF	OFF	15~17.5	15~17.5	-	-	-	5±0.3	5.5±0.3	15~17.5
↑	↑	↑	700	↑	↑	↑	↑	↑	↑	-	0.6~1.4	-	-	-	-	-	-
↑	↑	↑	652	↑	↑	↑	↑	↑	↑	-	2.1~2.7	-	-	-	-	-	-
D5	↑	852	0	0	0	0	852	OFF	ON	0.03~0.4	16.3±0.5	-	15~17.5	-	5±0.3	5.5±0.3	15~17.5
D6	↑	852	0	852	852	0	852	OFF	OFF	-	15~17.5	15~17.5	-	-	5±0.3	5.5±0.3	15~17.5
↑	↑	↑	↑	↑	↑	400	↑	↑	↑	-	12.5~13.5	-	-	-	-	-	-
↑	↑	↑	↑	↑	↑	852	↑	↑	↑	-	3.9~5.1	-	-	-	-	-	-
L	↑	0	0	0	852	0	852	ON	OFF	15~17.5	-	-	-	16.3±0.5	-	-	-
↑	600	↑	↑	↑	↑	↑	↑	↑	↑	Above 3.9	-	-	-	Above 3.9	5±0.3	5.5±0.3	Above 3.9
↑	EOP1100	↑	↑	↑	↑	↑	↑	↑	↑	Above 4.7	-	-	-	Above 4.7	5±0.3	5.5±0.3	Above 4.7
N	↑	852	0	0	852	0	852	ON	OFF	-	-	-	-	Above 6.0	5±0.3	5.5±0.3	Above 6.0
R	2500	852	852	0	0	0	852	OFF	ON	-	-	-	15~17.5	15~17.5	5±0.3	5.5±0.3	-

Is measured oil pressure value within specific?
YES
- Repair automatic transmission and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Repair automatic transmission (valve body) and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
