Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

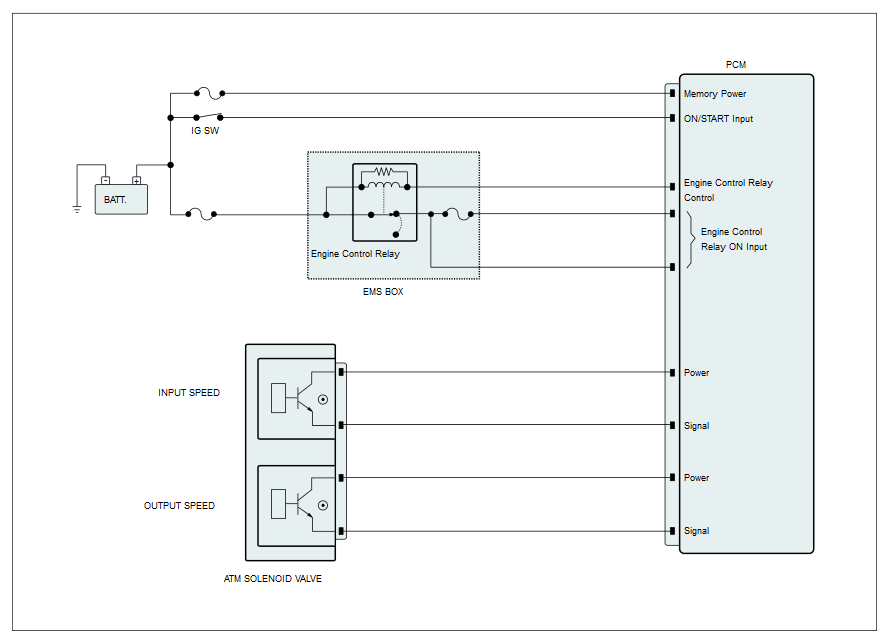

Fig 1: Input And Output Speed Sensor Circuit Diagram
G10603473Courtesy of HYUNDAI MOTOR AMERICA

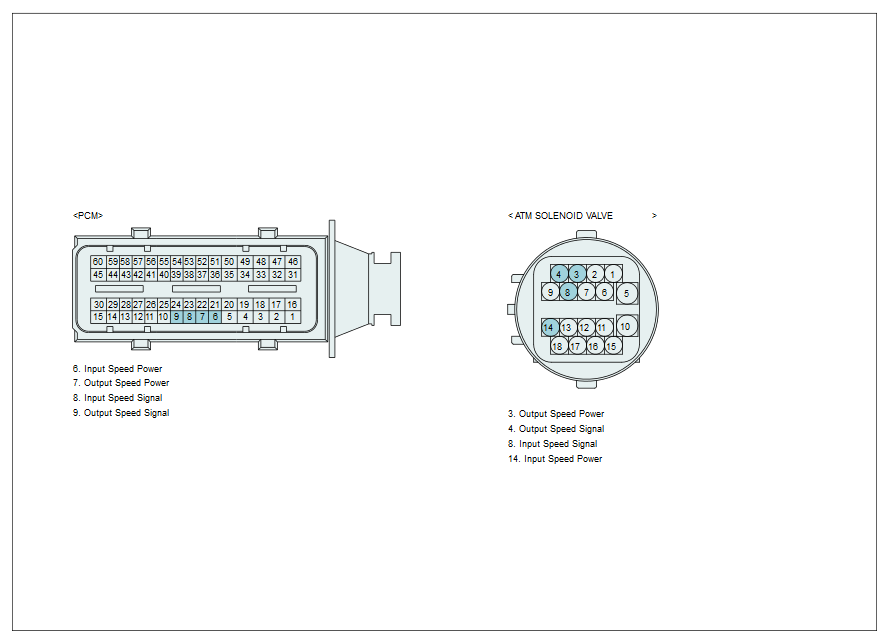

Fig 2: Identifying Input And Output Speed Sensor Connector Terminals
G10603474Courtesy of HYUNDAI MOTOR AMERICA
