Power Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

IG KEY "ON" & Engine "OFF".
Disconnect "ATM solenoid valve" connector.
Measure voltage between power of output speed sensor connector and chassis ground.
Specification: Approx. 7.6V

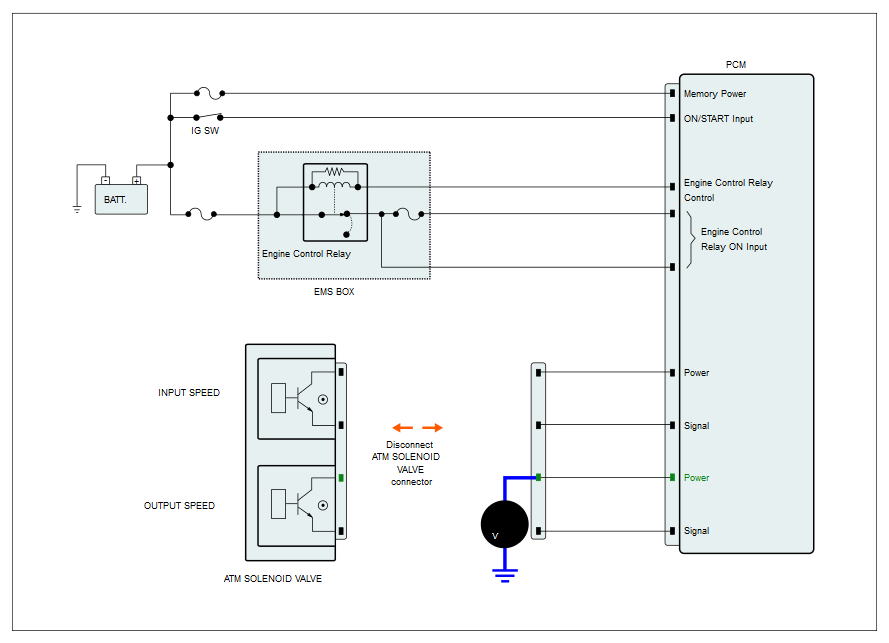

Fig 1: Measuring Voltage Between Power Of Output Speed Sensor Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR AMERICA

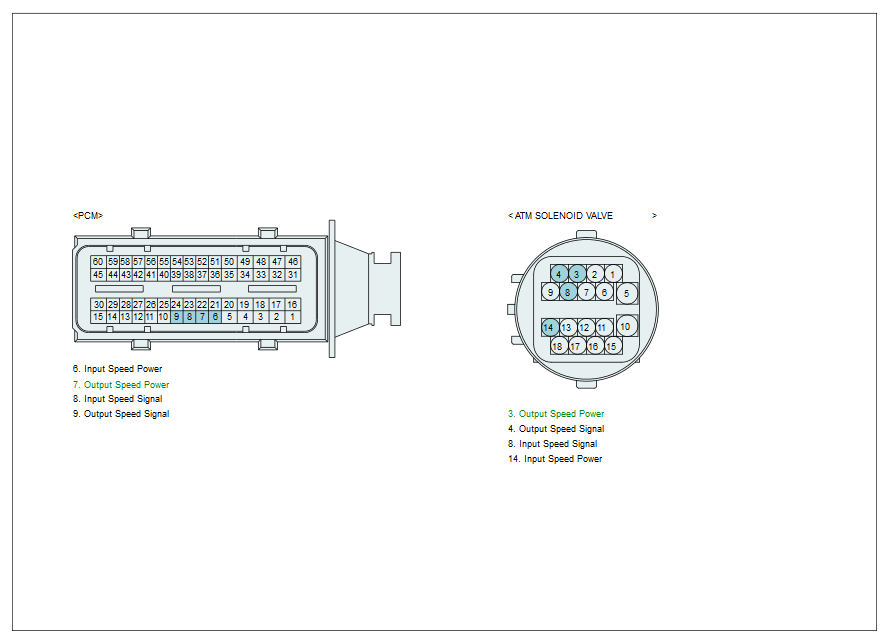

Fig 2: Identifying Input And Output Speed Sensor Connector Terminals
Courtesy of HYUNDAI MOTOR AMERICA
Is the measured voltage within specifications?
YES
- Go to "SIGNAL CIRCUIT INSPECTION " procedure.
NO
- Check harness for a battery short circuit or a ground short circuit and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
