Section 65 (Automatic Transaxle System Diagnosis (HEV))
>>
DTC P0721: Output Speed Sensor Circuit Range/Performance
>>
General Information
>>
Signal Waveform & Data
Signal Waveform & Data
WARNING:
This page is about a different variant/trim than selected.

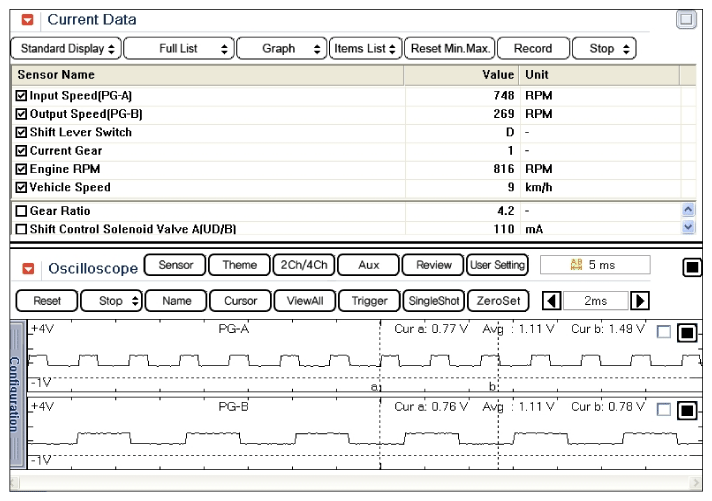

Fig 1: Scantool Display - Input/Output Speed Sensor At Low Speed
Courtesy of HYUNDAI MOTOR AMERICA

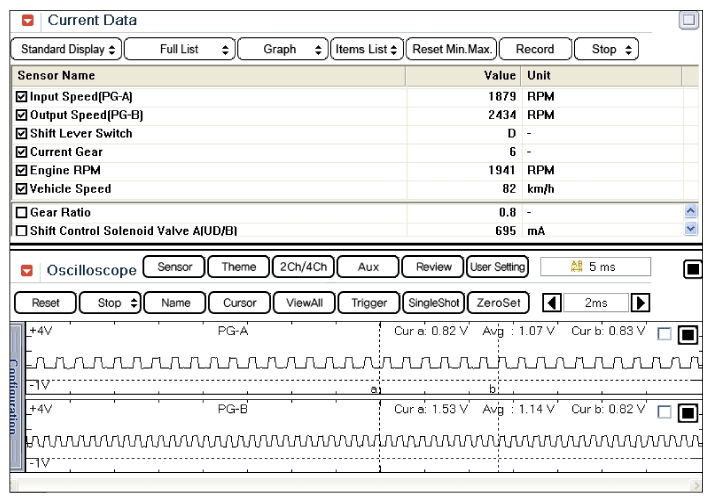

Fig 2: Scantool Display - Input/Output Speed Sensor At High Speed
Courtesy of HYUNDAI MOTOR AMERICA
