Monitor Scantool Data

WARNING: This page is about a different variant/trim than selected.

Connect scantool to Data Link Connector (DLC).
Engine "ON".
Select "Current Data" mode and monitor "Input speed sensor (PG-A)" parameter.
Driving above 20 Km/h(12.4MPH)
Specification: Increasing Gradually

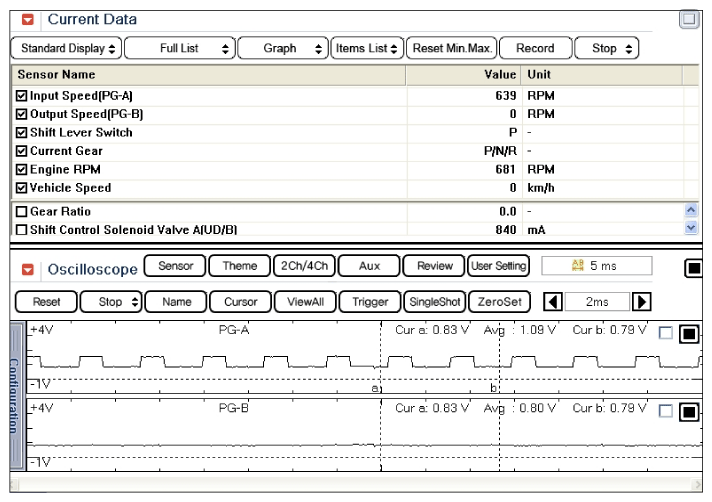

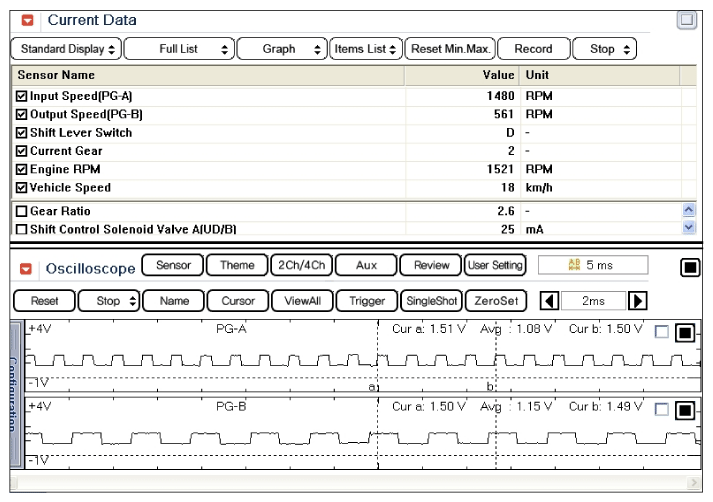

Fig 1: Scantool Display - Current Data (P And N Range)
Courtesy of HYUNDAI MOTOR AMERICA

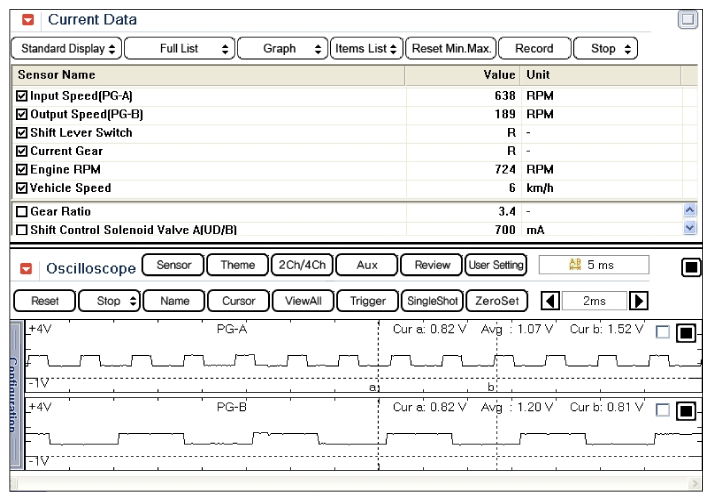

Fig 2: Scantool Display - Current Data (R Range)
Courtesy of HYUNDAI MOTOR AMERICA

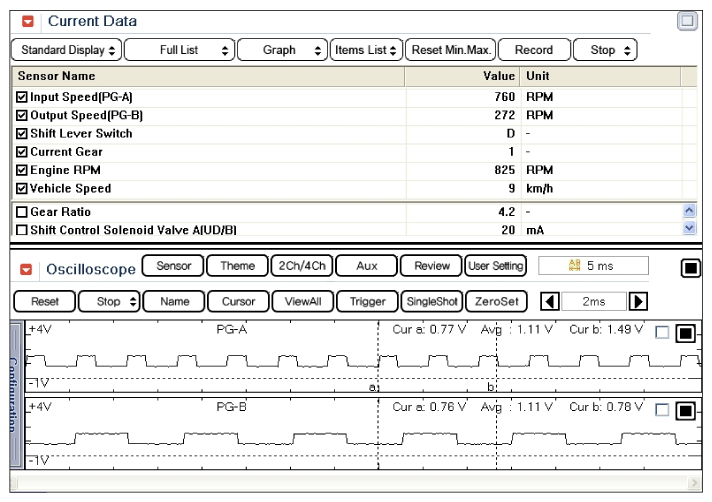

Fig 3: Scantool Display - Current Data (D Range 1st Gear)
Courtesy of HYUNDAI MOTOR AMERICA

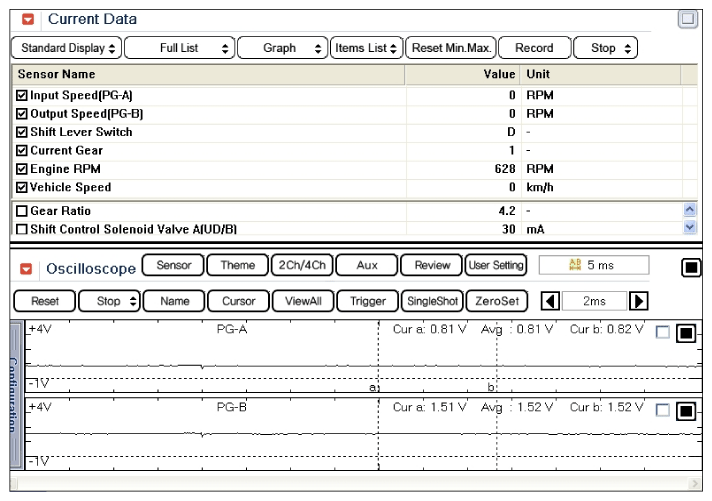

Fig 4: Scantool Display - Current Data (D Range 1st Gear And Vehicle Speed=0)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 5: Scantool Display - Current Data (D Range 2nd Gear)
Courtesy of HYUNDAI MOTOR AMERICA

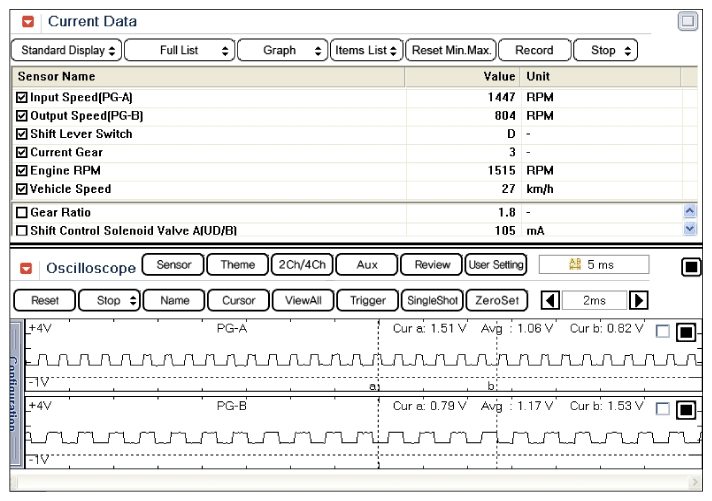

Fig 6: Scantool Display - Current Data (D Range 3rd Gear)
Courtesy of HYUNDAI MOTOR AMERICA

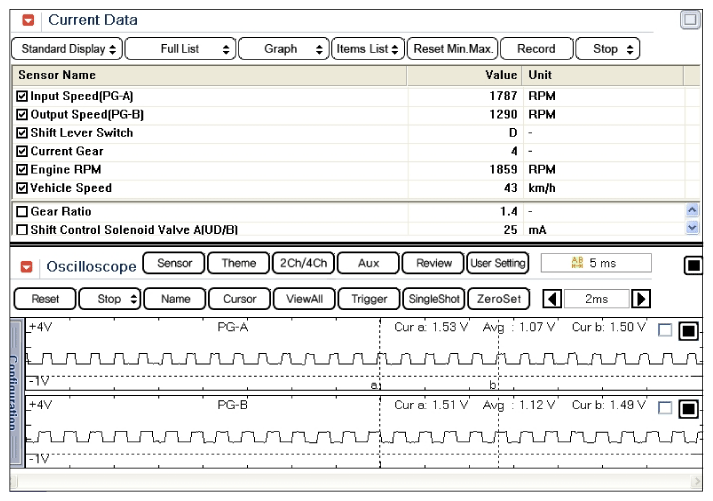

Fig 7: Scantool Display - Current Data (D Range 4th Gear)
Courtesy of HYUNDAI MOTOR AMERICA

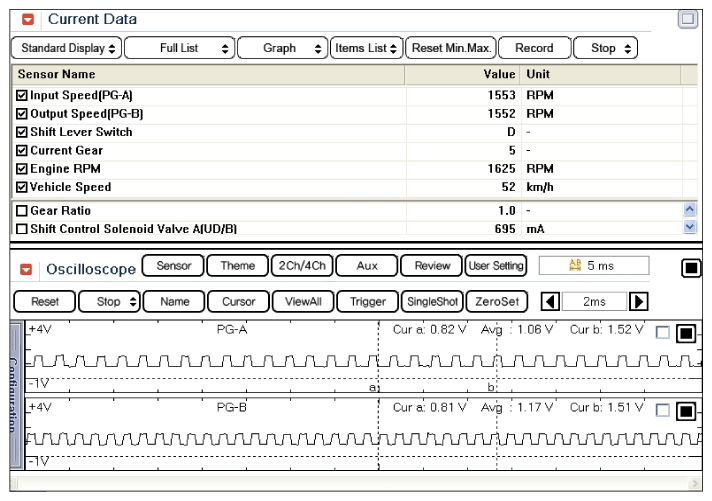

Fig 8: Scantool Display - Current Data (D Range 5th Gear)
Courtesy of HYUNDAI MOTOR AMERICA

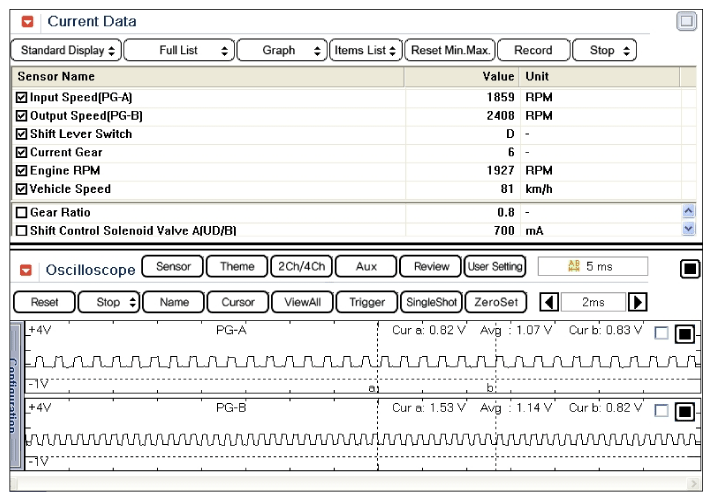

Fig 9: Scantool Display - Current Data (D Range 6th Gear)
Courtesy of HYUNDAI MOTOR AMERICA
Is measured "Input Speed Sensor" value within specific?
YES
- Fault is intermittent caused by poor contact between TCM and Sensor, and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "VERIFICATION VEHICLE REPAIR " procedure.
NO
- Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
