Section 65 (Automatic Transaxle System Diagnosis (HEV))
>>
DTC P0713: Transmission Fluid Temperature Sensor 'A' Circuit High Input
>>
General Information
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

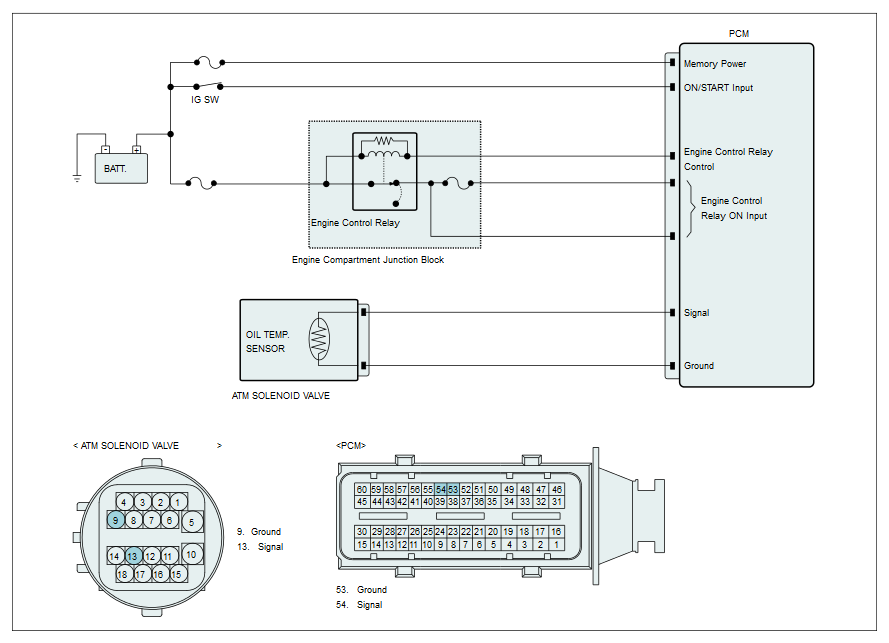

Fig 1: Automatic Transaxle Fluid Temperature Sensor Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
