Component Inspection

■ "Oil temperature sensor" Inspection

1. Ignition "OFF".
2. Disconnect Oil temperature sensor connector.
3. Measure the resistance across the two terminals of the Oil Temperature sensor.

   Specification:  Approx. 12V

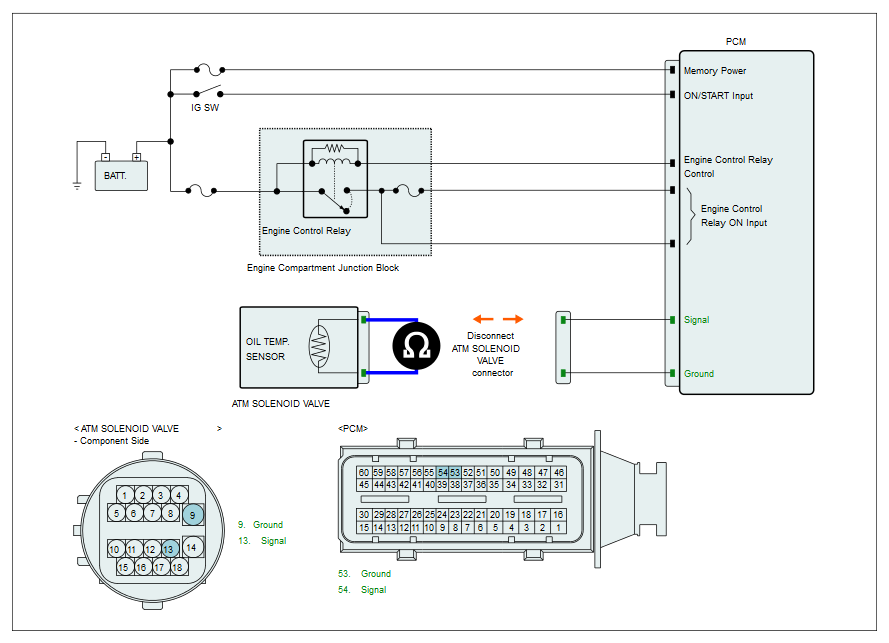

   Fig 1: Measuring Resistance Across Two Terminals Of Oil Temperature Sensor

   Courtesy of HYUNDAI MOTOR AMERICA
   OIL TEMPERATURE SENOR REFERENCE DATA SPECIFICATION



   Temp (°C)	Resistance (kΩ)
   -40	46.8
   -20	15.6
   0	5.88
   20	2.51
   40	1.17
   60	0.59
   80	0.321
   100	0.18
   120	0.11
   140	0.07
   165	0.043

4. Is the measured resistance within specifications?

   YES

   • Go to "PCM/TCM Inspection" procedure below.

   NO

   • Replace Oil temperature sensor as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

■ PCM/TCM

1. Ignition "ON" & Engine "OFF".
2. Connect Oil temperature sensor connector.
3. Connect scantool to Data Link Connector (DLC) and select Simulation mode.
4. Input 0 → 5 voltage at Oil temperature sensor signal line by simulation mode and Monitoring Oil temperature.

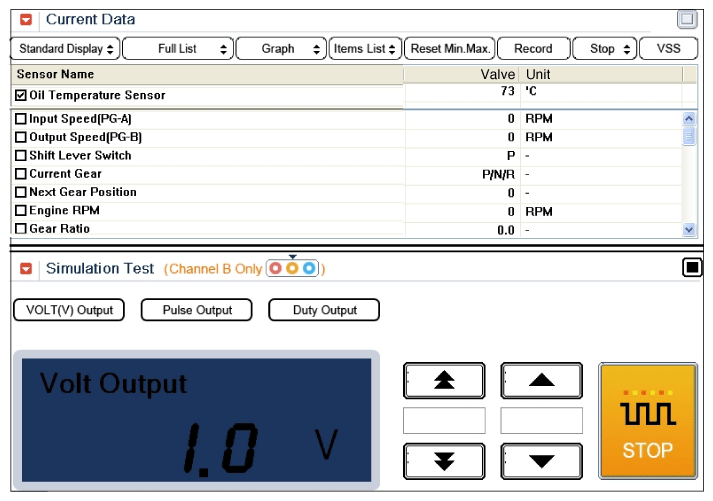

   Fig 2: Scantool Display - Simulation Output Voltage (1.00V → 73°C And 163.4°F)

   Courtesy of HYUNDAI MOTOR AMERICA

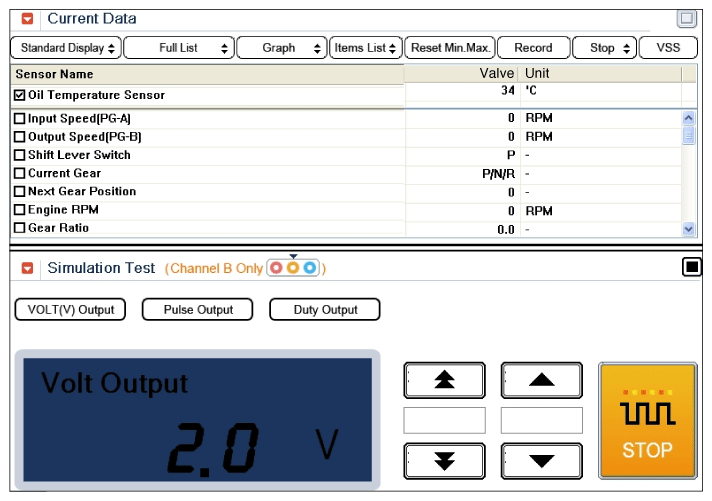

   Fig 3: Scantool Display - Simulation Output Voltage (2.00V → 34°C And 93.2°F)

   Courtesy of HYUNDAI MOTOR AMERICA

   ⓧ It is subject to change vehicle condition.

5. Is measured Oil temperature sensor value changed by simulating voltage?

   YES

   • Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "VERIFICATION VEHICLE REPAIR " procedure.

   NO

   • Substitute with a known-good PCM/TCM and check for proper operation. If the problem is corrected, replace PCM/TCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
