Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

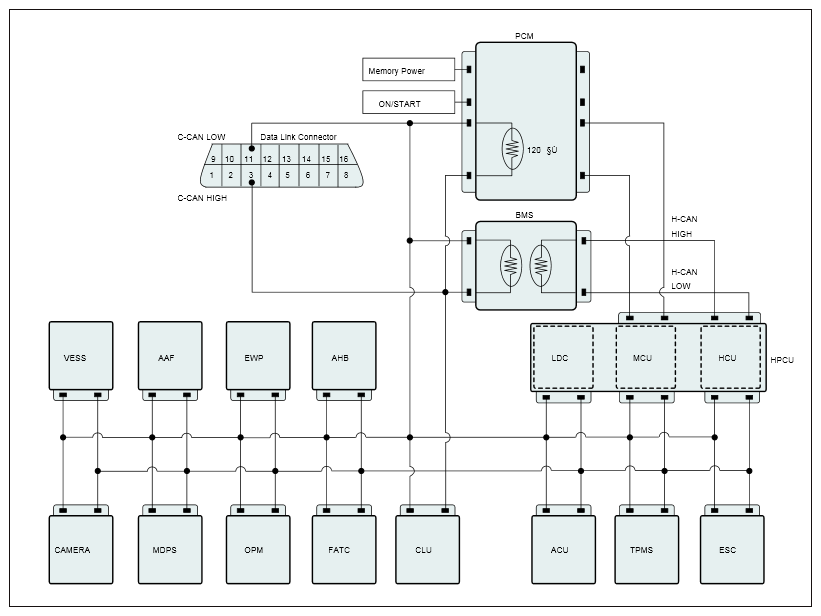

Fig 1: C-CAN Circuit Diagram
G10602624Courtesy of HYUNDAI MOTOR AMERICA

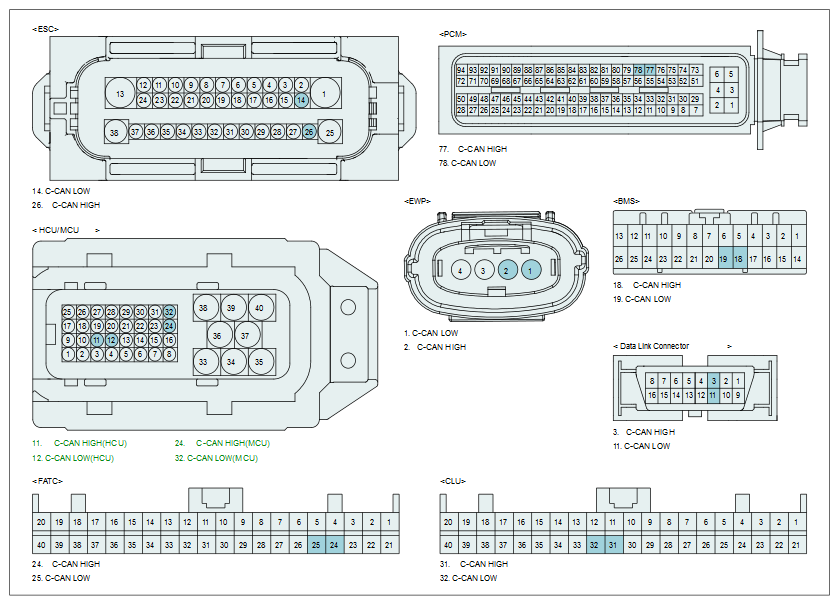

Fig 2: PCM Connector Terminal
G10602625Courtesy of HYUNDAI MOTOR AMERICA
