Section 64 (HEV Motor System Diagnosis (HEV))
>>
DTC U0101: Lost Communication With TCM (C-CAN)
>>
General Information
>>
Signal Waveform & Data
Signal Waveform & Data
WARNING:
This page is about a different variant/trim than selected.

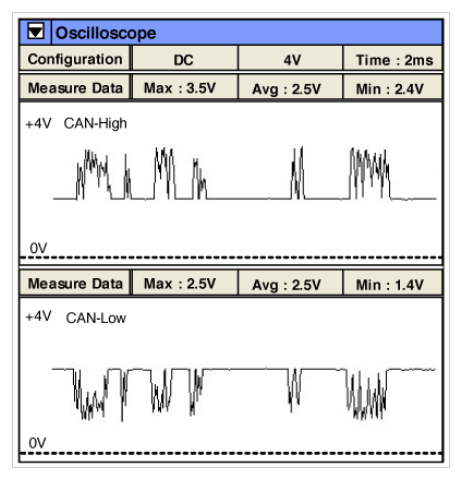

Fig 1: Screen Display - Oscilloscope Signal Waveform
Courtesy of HYUNDAI MOTOR AMERICA
