Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

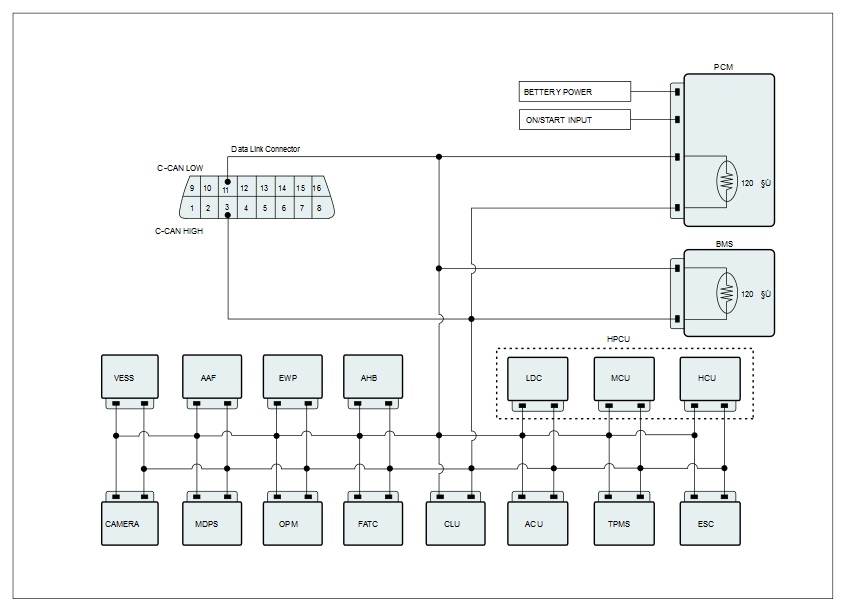

Fig 1: C-CAN Circuit Diagram
G10602561Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: ESC Connector Terminal
G10602562Courtesy of HYUNDAI MOTOR AMERICA
