Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

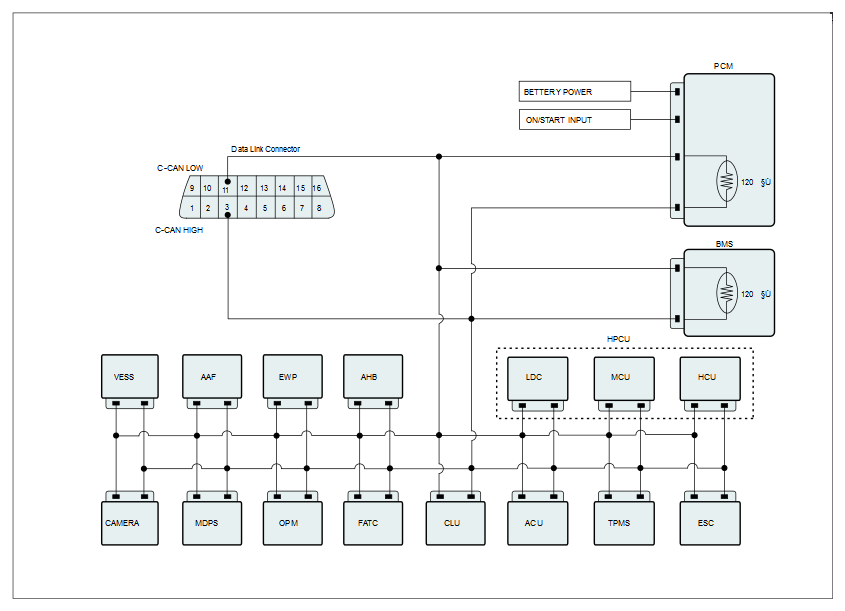

Fig 1: C-CAN Circuit Diagram
G10602550Courtesy of HYUNDAI MOTOR AMERICA

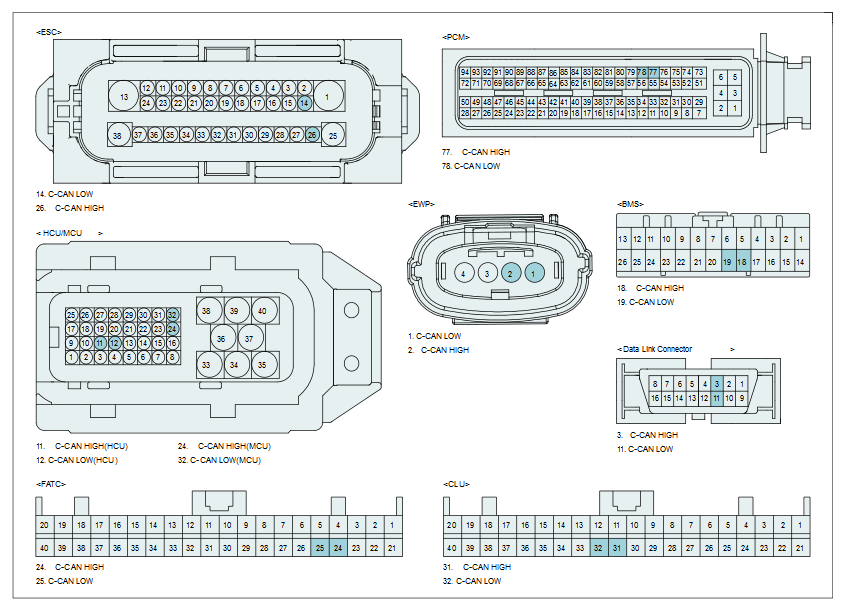

Fig 2: ESC Connector Terminal
G10602551Courtesy of HYUNDAI MOTOR AMERICA
