Monitor Scantool Data
WARNING: This page is about a different variant/trim than selected.
- Ignition ON/Hybrid Ready (Cluster Indicator "READY" On) Vehicle Parked.
- Connect GDS and select "Data Analysis" mode.

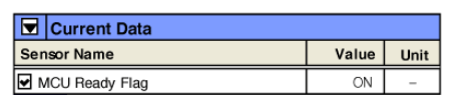

- Select "Current Data" mode and monitor "MCU (GCU) Ready Flag" parameter.
- Is the "MCU (GCU) Ready Flag" value displayed as "OFF"?
YES
- Go to Next procedure.
NO
- Fault is intermittent caused by poor contact in the sensor's and/or Control Module's connector or was repaired and Control Module's memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
