Monitor Scantool Data
WARNING: This page is about a different variant/trim than selected.
- Ignition ON/Hybrid Ready (Cluster Indicator "READY" On) Vehicle Parked.
- Connect GDS and select "Data Analysis" mode.

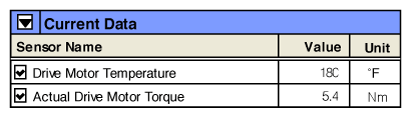

- Select "Current Data" mode and monitor "Drive Motor Temperature" parameter.
- Check below items if the current temperature value is abnormal condition.
Check poor connection of Drive Motor Temperature Sensor connector.
Check oil in the Drive Motor inside shares A/T oil and amount of ATF.
Check the tendency of temperature changes between ATF and Driver Motor is similar.
Check the temperature is changing with vehicle driving.
Substitute with a known-good Drive Motor and check for proper operation. If the problem is corrected, replace Drive Motor and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
It needs to initialize Resolver with GDS after replacing Drive Motor.
