Monitor Scantool Data
WARNING: This page is about a different variant/trim than selected.
- Ignition ON/Hybrid Ready (Cluster Indicator "READY" On) Vehicle Parked.
- Connect GDS and select "Data Analysis" mode.
- Select "Current Data" mode and monitor "MCU (GCU) Temperature" parameter.
Specification: - 22 ~ 302°F (-30 ~ 150°C)

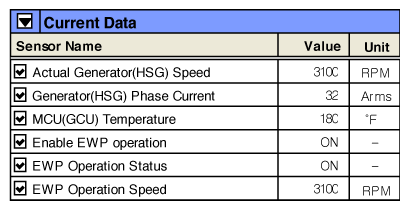

(Fig.2-2) Check the EWP is in normal operation.
- If the current temperature is abnormal, check below parts.
Check Cooling System is normal operation (including EWP operation).
Check number of Generator (HSG) operation and MCU (GCU) temperature changes as operating time goes by.
Check temperature value changes while driving vehicle.
Substitute with a known-good MCU (GCU) and check for proper operation. If the problem is corrected, replace MCU (GCU) and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
After Component replacement Motor/HSG Resolver Calibration must be performed using the GDS.
