Terminal and Connector Inspection
WARNING: This page is about a different variant/trim than selected.
- Many malfunctions in the electrical system are caused by poor harness(es) and terminal condition. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Has a problem been found?
YES
- Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to Next procedure.
■ Check for Open in Harness
- Ignition OFF
- Disconnect safety plug from the main battery (Wait for 5 minutes after OFF).
- Disconnect HSG Motor Cable and MCU main harness connector.

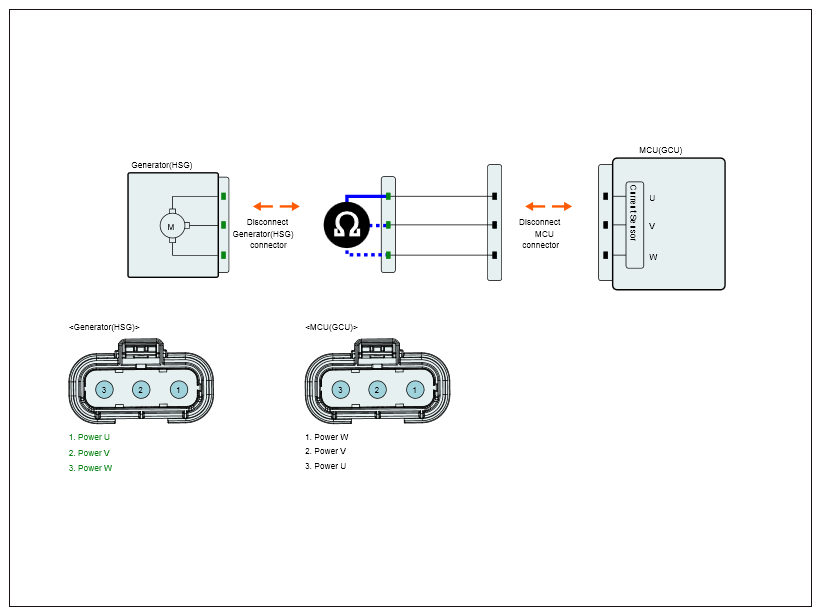

- Measure resistance between Cable terminal of HSG Motor Cable harness connector and Cable terminal of MCU harness connector.
Specification: below 1
- Is the measured resistance within specifications?
YES
- Go to Next procedure.
NO
- Check for open in harness.
- Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
■ Check for Short in Harness
- Ignition OFF
- Disconnect safety plug from the main battery (Wait for 5 minutes after OFF).
- Disconnect HSG Motor Cable and MCU main harness connector.

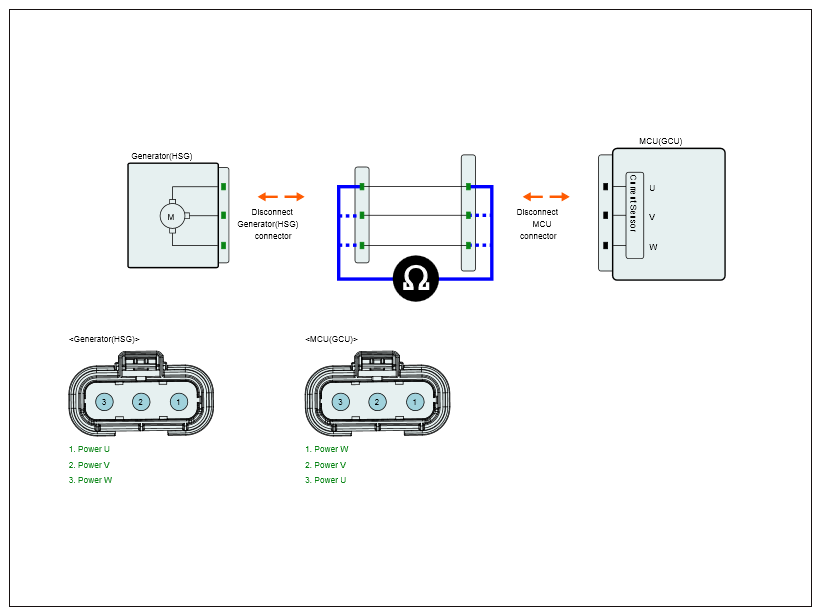

- Measure resistance between Cable terminal of HSG Motor Cable harness connector and Cable terminal of MCU harness connector.
Specification: Infinity (or upper 10M)
- Is the measured resistance within specifications?
YES
- Go to Next procedure.
NO
- Check for open in harness.
- Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
