Monitor DTC Status

WARNING: This page is about a different variant/trim than selected.

Ignition ON (SSB LED "BLUE") & Vehicle "STOP".
Connect GDS and select "DTC Analysis" mode.
Click "DTC Status" on the menu bar to view DTC information.
If P0A78 DTC is History fault, Clear the DTCs and Operate the vehicle within DTC Enable conditions - DTC is Active (Fig 1): Go to the "Freeze Frame"(Fig 1), confirm that "Information Code" (Fig 2)
After check the "Information Code"(Fig 3), next step as indicated below.

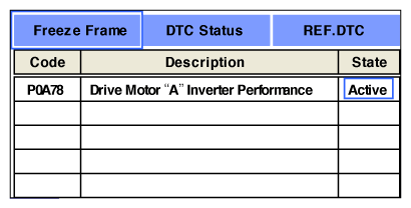

Fig 1: Screen Display - DTC Status
Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Screen Display - Freeze Frame Data
Courtesy of HYUNDAI MOTOR AMERICA

Fig 3: Screen Display - DTC Information Status
Courtesy of HYUNDAI MOTOR AMERICA
Is parameter displayed "Active"?
YES
- Repair according to the detailed description of Information Code.
NO
- Control module's connector was repaired and Control module's memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Fig 4: Power Relay Assembly
Courtesy of HYUNDAI MOTOR AMERICA
