Section 64 (HEV Motor System Diagnosis (HEV))
>>
DTC P0A5F: Drive Motor 'A' Phase U Current High
>>
General Information
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

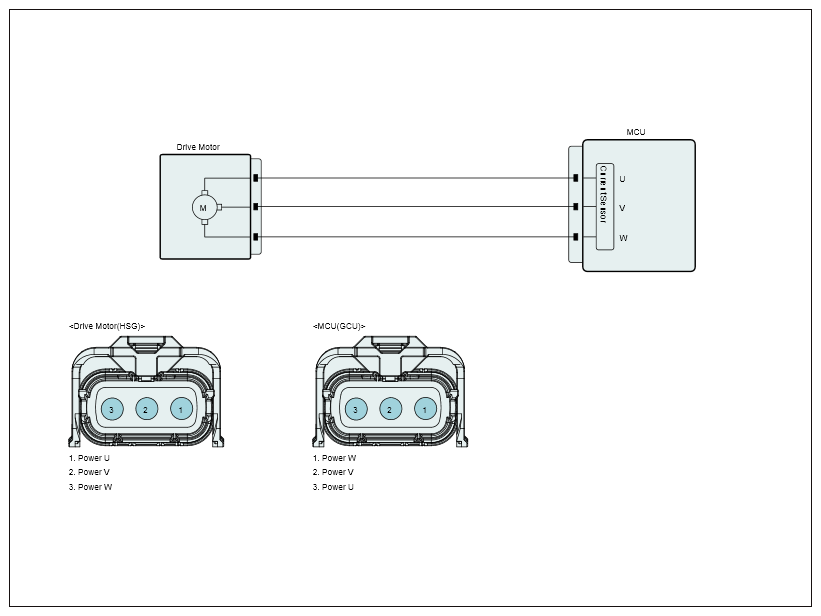

Fig 1: Drive Motor Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
