Monitor Scantool Data

WARNING: This page is about a different variant/trim than selected.

Ignition ON/Hybrid Ready (Cluster Indicator "READY" On) Vehicle Parked.
Connect GDS and select "Data Analysis" mode.
Select "Current Data" mode and monitor "Generator (HSG) Temperature" parameter.
Specification:

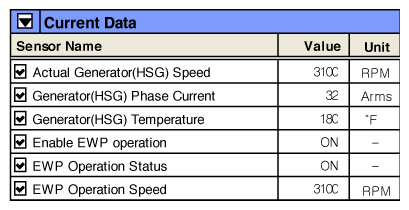

Fig 1: Screen Display - Generator (HSG) Temperature
Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Screen Display - Sensor Name
Courtesy of HYUNDAI MOTOR AMERICA

(Fig.2-2) Check EWP is operating correctly.
If the current temperature is abnormal, check below parts.
Check poor connection of Generator (HSG) Temperature Sensor connector.

Check cooling system because Generator (HSG) cooling system failure gives influence to HSG temperature changes.

Check Number of the Generator (HSG) operation and Generator (HSG) temperature changes as time goes by.

Go to Next procedure.
