Monitor Scantool Data

WARNING: This page is about a different variant/trim than selected.

Ignition ON/Hybrid Ready (Cluster Indicator "READY" On) Vehicle Parked.
Connect GDS and select "Data Analysis" mode.
Select "Current Data" mode and monitor "Drive Motor temperature" parameter.
Specification: - 4 ~ 390°F (-20 ~ 200°C)

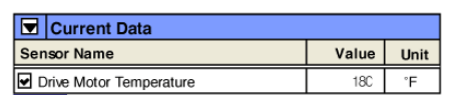

Fig 1: Screen Display - Drive Motor Temperature
Courtesy of HYUNDAI MOTOR AMERICA

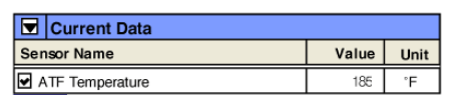

Fig 2: Screen Display - ATF Temperature
Courtesy of HYUNDAI MOTOR AMERICA

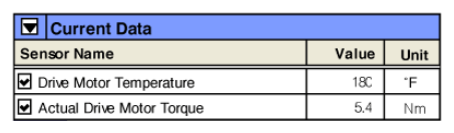

Fig 3: Screen Display - Sensor Name
Courtesy of HYUNDAI MOTOR AMERICA

(Fig.3) Check Driver Motor Temperature value changes as the Drive Motor Torque value goes up.
Check below parts if the current temperature value is abnormal condition.
Check below parts if the current temperature is not normal condition.
- Check poor connection of Drive Motor Temperature Sensor connector.
- Check oil in the Drive Motor inside shares A/T oil and amount of ATF.
- Check the tendency of temperature changes between ATF and Driver Motor is similar.
- Check the temperature is changing with vehicle driving.
- Go to Next procedure.
