Ground Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
■ Check for Open in Harness
- Ignition OFF
- Disconnect safety plug from the main battery (Wait for more than 5 minutes after disconnecting).
- Disconnect Drive Motor Temperature Sensor and MCU main harness connector.

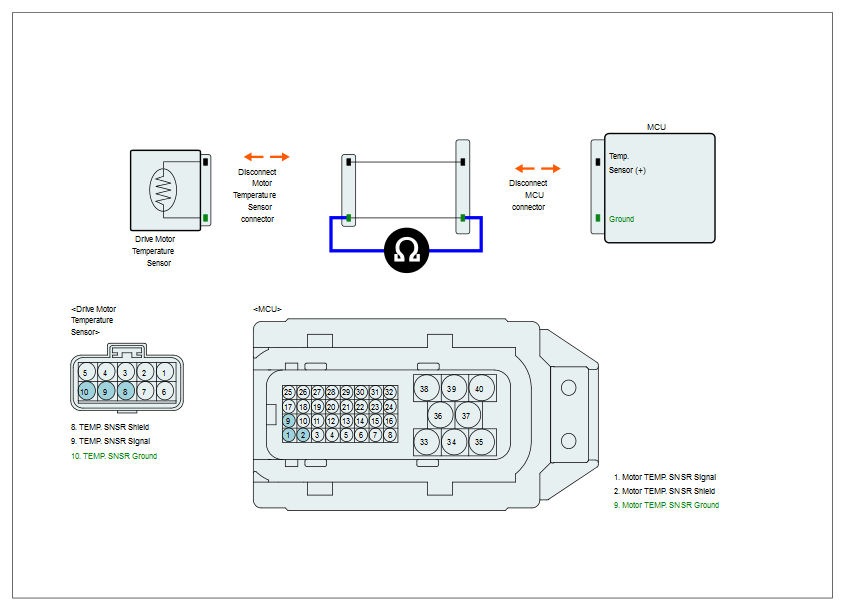

- Measure resistance between ground terminal of Drive Motor Temperature Sensor harness connector and ground terminal of MCU harness connector.
Specification: Below 1Ω
- Is the measured resistance within specifications?
YES
- Go to Next procedure.
NO
- Check for open in harness.
- Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
