Monitor Scantool Data

WARNING: This page is about a different variant/trim than selected.
  1. Ignition ON/Hybrid Ready (Cluster Indicator "READY" On) and Vehicle Parked.
  2. Connect GDS and select "Data Analysis" mode.
  3. Select "Current Data" mode and monitor "Drive Motor temperature" parameter.

    Specification:  - 4 ~ 390°F (-20 ~ 200°C)

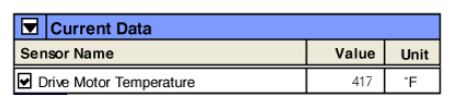

    Fig 1: Screen Display - Drive Motor Temperature
    G10602292Courtesy of HYUNDAI MOTOR AMERICA

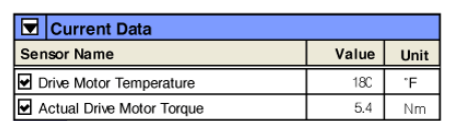

    Fig 2: Screen Display - Sensor Name
    G10602293Courtesy of HYUNDAI MOTOR AMERICA
  4. Is the Temperature Sensor abnormal?
