Section 63 (Power Distribution Module Diagnosis (HEV))
>>
DTC B1991: Immobilizer TX Short Circuit To Ground
>>
General Information
>>
Signal Waveform & Data
Signal Waveform & Data
WARNING:
This page is about a different variant/trim than selected.

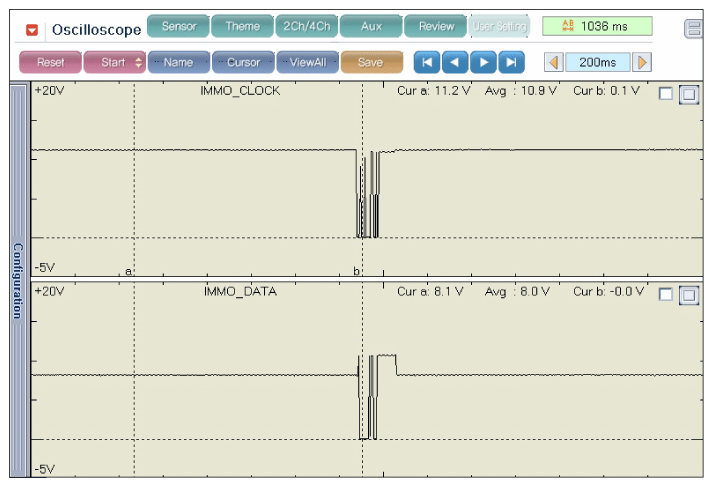

Fig 1: Screen Display - IMMO Clock And IMMO Data Signal Waveform
Courtesy of HYUNDAI MOTOR AMERICA
