General Information: General Description
WARNING: This page is about a different variant/trim than selected.
This is DTC which is related with communication error between PDM and other units.

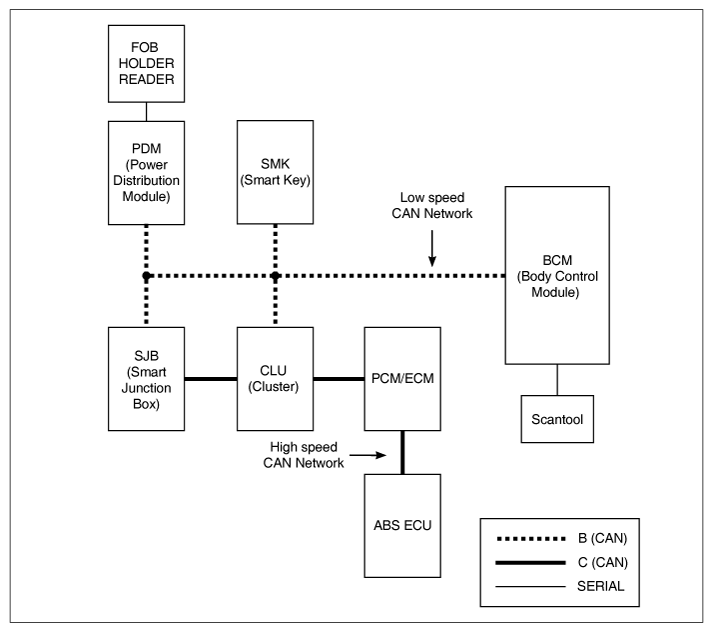

* Body CAN communication Control Units: BCM (Body Control Module), CLU (Cluster), PDM (Power Distribution Module), SMK (Smart Key), RPAS (Rear Parking Assist System).
*1 CAN (Controller Area Network): CAN is serial bus communication type which links not only communication system but also control units each other.
After insert the fob into the fob holder, press SSB button. Then, the communication state between the fob and the immobilizer is inputted to PDM.
