Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

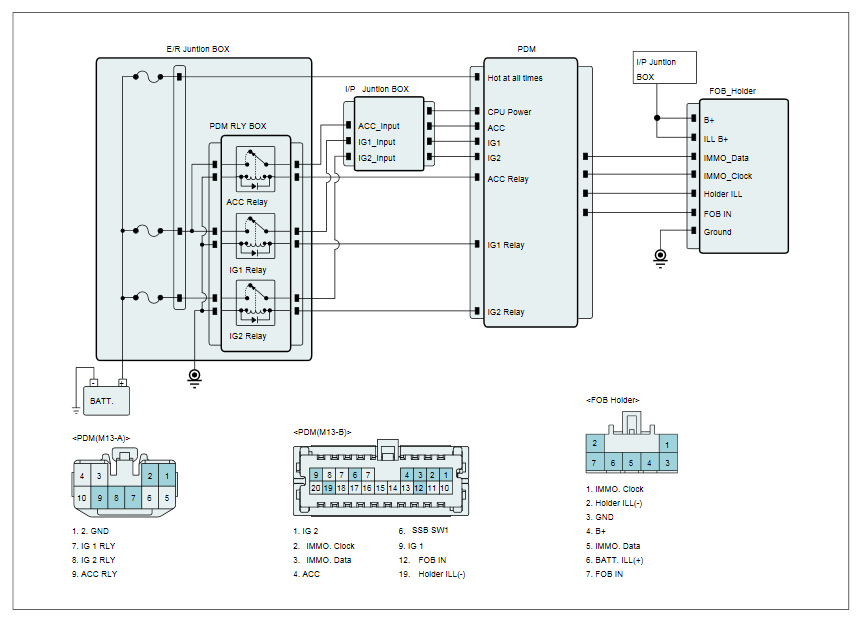

Fig 1: PDM & POD Holder Diagnostic Circuit Diagram With Connector End Views
G10603047Courtesy of HYUNDAI MOTOR AMERICA
