Component and Component Location: Components

WARNING: This page is about a different variant/trim than selected.

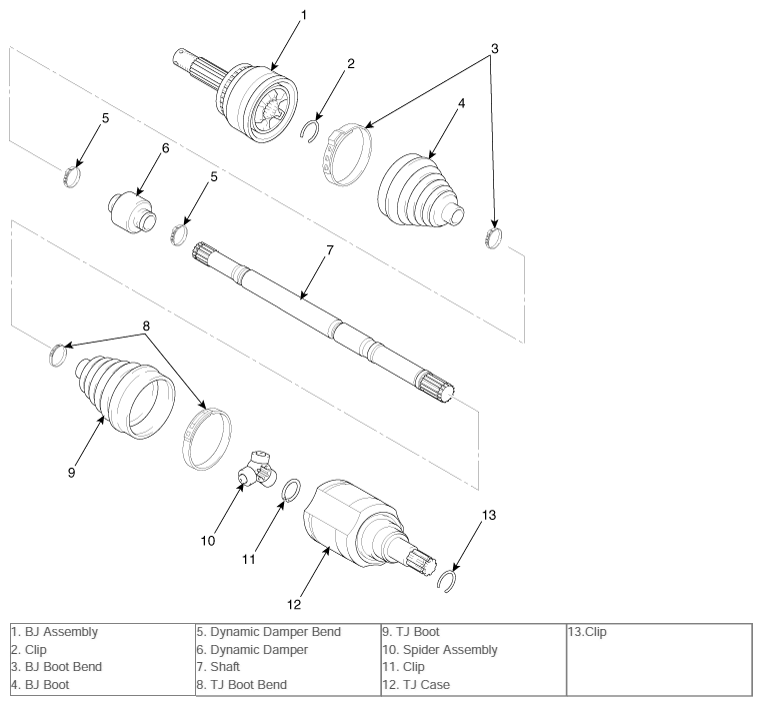

Fig 1: Identifying Right Front Driveshaft Components
G10588913Courtesy of HYUNDAI MOTOR AMERICA

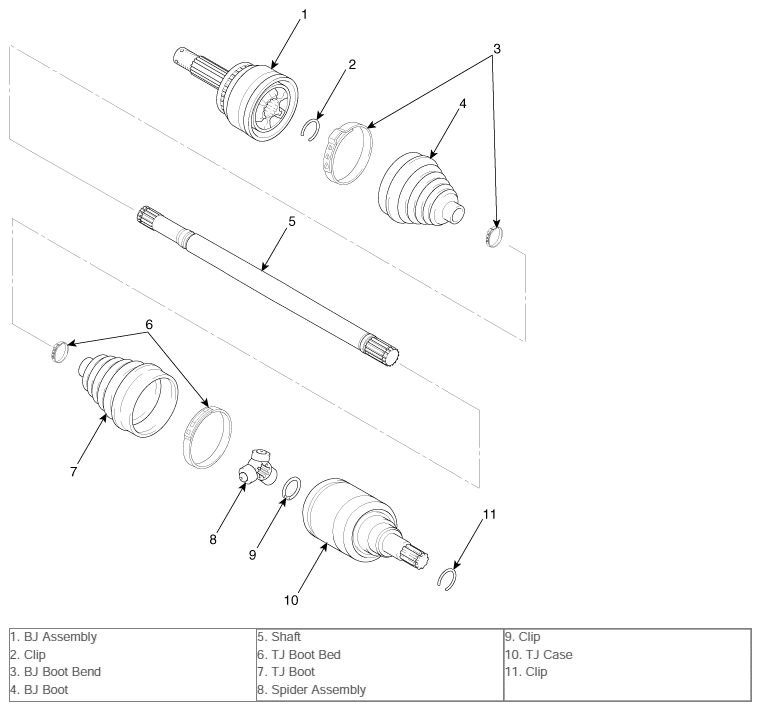

Fig 2: Identifying Left Front Driveshaft Components
G10588914Courtesy of HYUNDAI MOTOR AMERICA
