Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

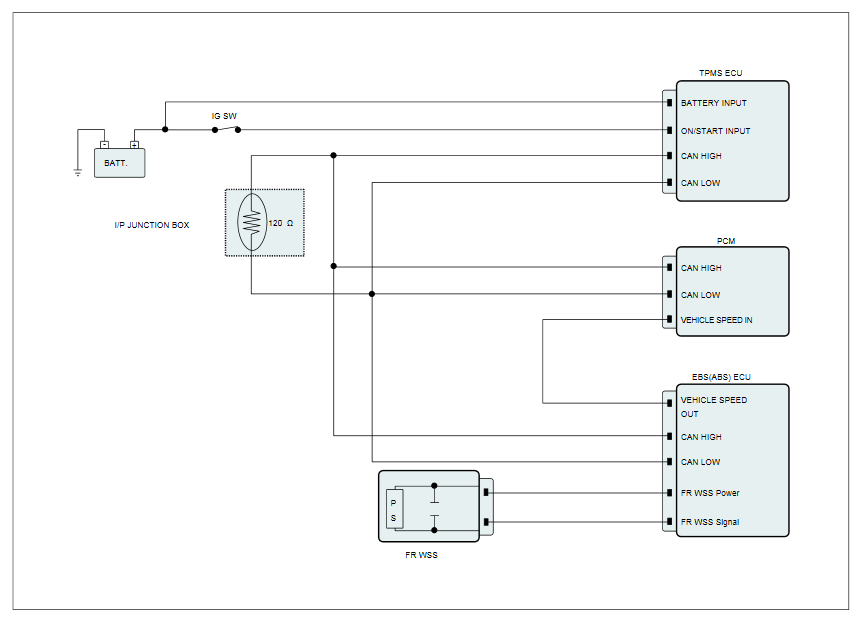

Fig 1: TPMS ECU Diagnostic Circuit Diagram
G10603385Courtesy of HYUNDAI MOTOR AMERICA

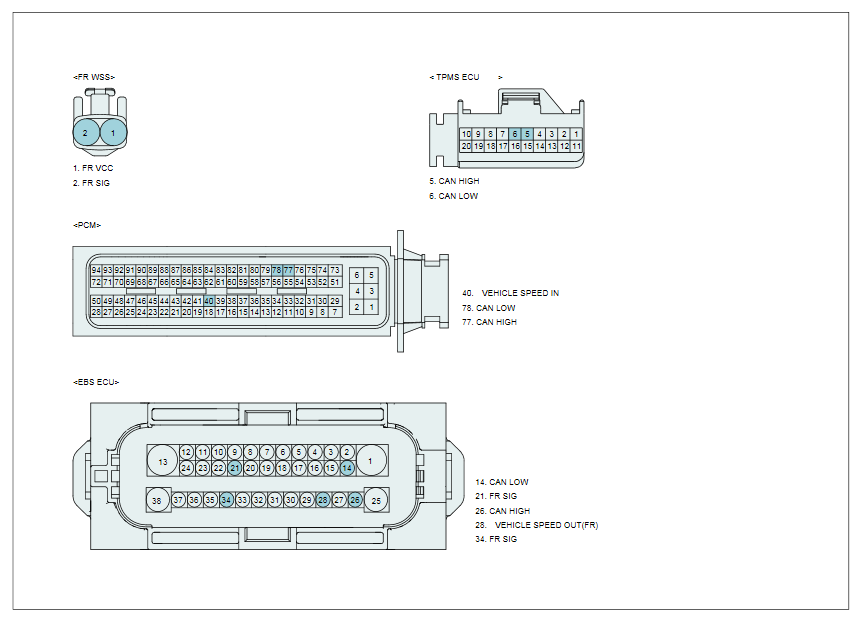

Fig 2: EBS ECU Connector Terminals
G10603386Courtesy of HYUNDAI MOTOR AMERICA
