Section 59 (Tire Pressure Monitoring System Diagnosis (HEV))
>>
DTC C1300: TPMS ECU IRX not responding
>>
General Information
>>
Component Location
Component Location
WARNING:
This page is about a different variant/trim than selected.

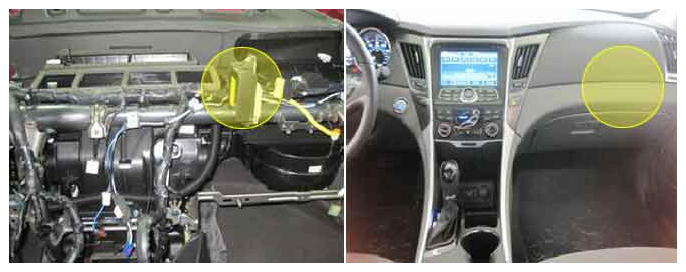

Fig 1: Tire Pressure Monitoring System ECU Component Location
Courtesy of HYUNDAI MOTOR AMERICA
