Section 57 (Engine Control System Diagnosis (2 Of 2) (HEV))
>>
DTC U1008: Lost Communication With Radiator Shutter (Active Air Flap) (C-CAN)
>>
General Information
>>
Component Location
Component Location
WARNING:
This page is about a different variant/trim than selected.

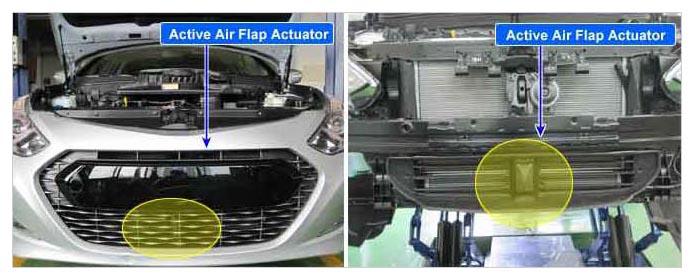

Fig 1: Active Air Flap Actuator Location
Courtesy of HYUNDAI MOTOR AMERICA
