Section 57 (Engine Control System Diagnosis (2 Of 2) (HEV))
>>
DTC U05A0: Invalid Data Received From Evaporative Emission System Leak Detection Control Module
>>
General Information
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

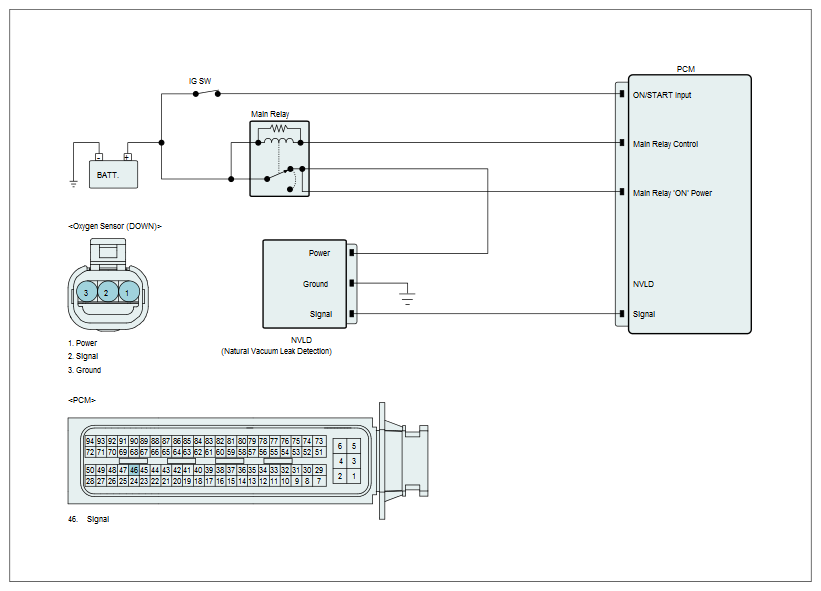

Fig 1: Natural Vacuum Leak Detection Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
