Section 57 (Engine Control System Diagnosis (2 Of 2) (HEV))
>>
DTC U0293: Lost Communication With Hybrid Powertrain Control Module (C-CAN)
>>
General Information
>>
Signal Waveform
Signal Waveform
WARNING:
This page is about a different variant/trim than selected.

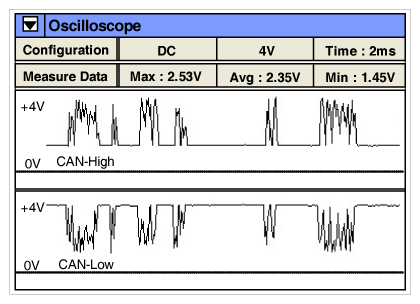

Fig 1: Scantool Display - CAN High And Low Signal Waveform Of HPCU
Courtesy of HYUNDAI MOTOR AMERICA
