Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

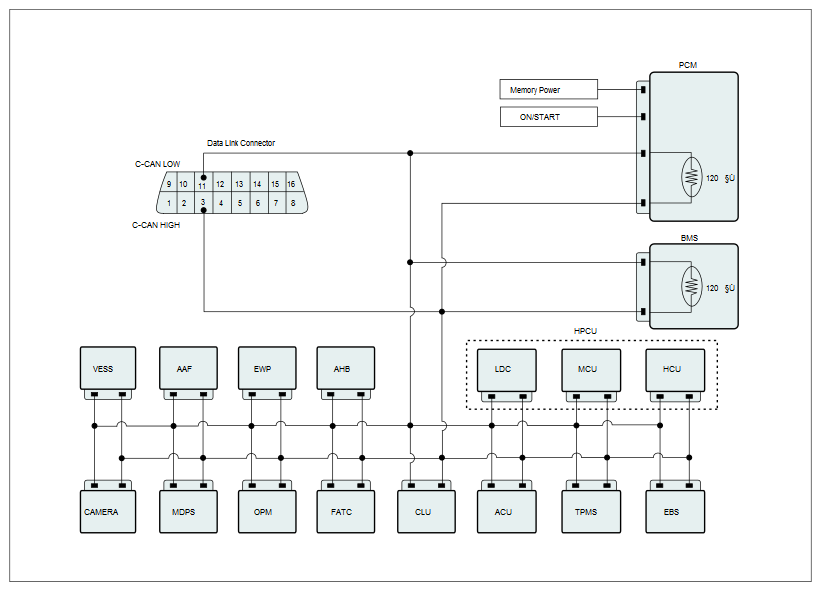

Fig 1: HPCU Circuit Diagram
G10607003Courtesy of HYUNDAI MOTOR AMERICA

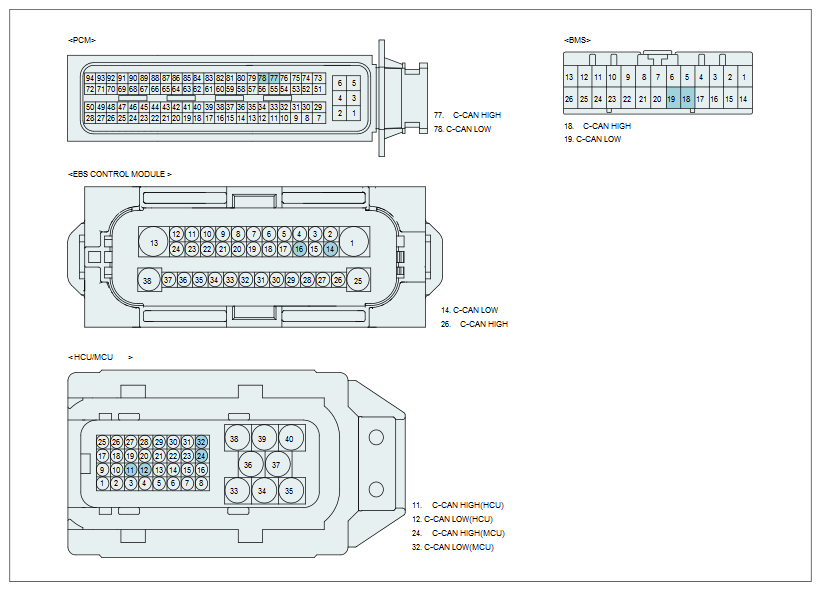

Fig 2: Identifying HPCU Connector Terminals
G10607004Courtesy of HYUNDAI MOTOR AMERICA
