Section 57 (Engine Control System Diagnosis (2 Of 2) (HEV))
>>
DTC U0110: Lost Communication With Drive Motor Control Module 'A' (C-CAN)
>>
General Information
>>
Component Location
Component Location
WARNING:
This page is about a different variant/trim than selected.

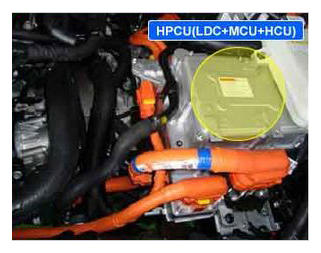

Fig 1: HPCU (LDC+MCU+HCU) Location
Courtesy of HYUNDAI MOTOR AMERICA
