Check CAN communication line for short to ground
WARNING: This page is about a different variant/trim than selected.

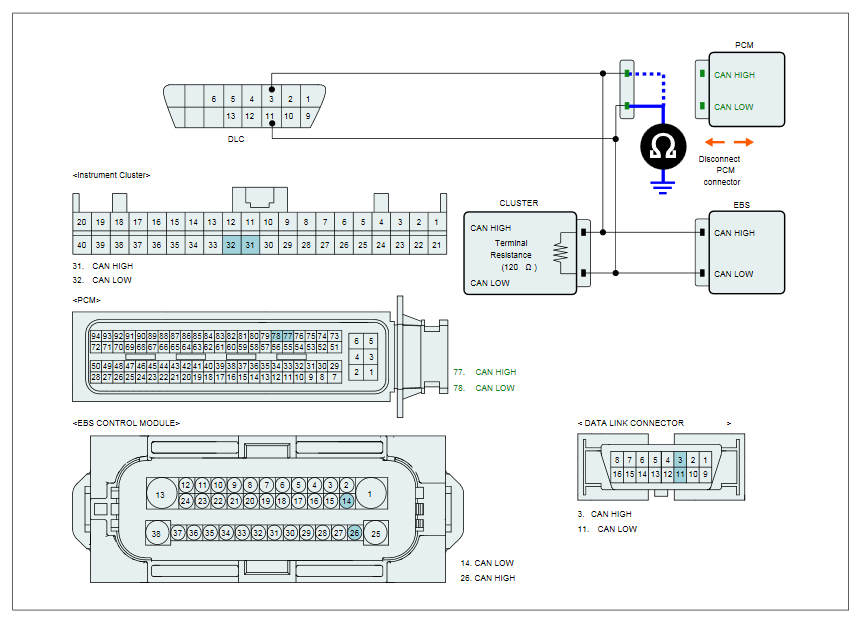

- Measure resistance between High signal terminal of PCM harness connector and chassis ground.
- Measure resistance between Low signal terminal of PCM harness connector and chassis ground.
Specification: Infinite (above 10kΩ)
- Is resistance within the specification?
YES
- Go to next step as below.
NO
- Repair CAN communication line for a short to ground. And then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
