Section 57 (Engine Control System Diagnosis (2 Of 2) (HEV))
>>
DTC U0001: High Speed CAN Communication Bus Off
>>
General Information
>>
Signal Waveform & Data
Signal Waveform & Data
WARNING:
This page is about a different variant/trim than selected.

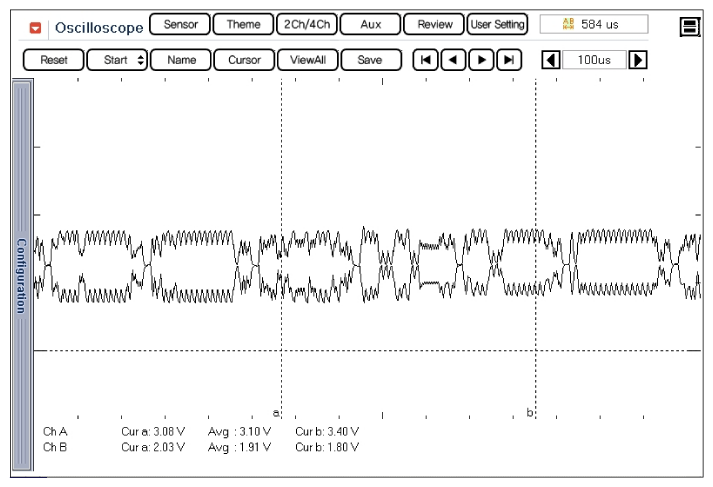

Fig 1: Scantool Display - Signal Waveform Of PCM (Ignition ON)
Courtesy of HYUNDAI MOTOR AMERICA
