Component Inspection
WARNING: This page is about a different variant/trim than selected.
- Ignition "OFF".

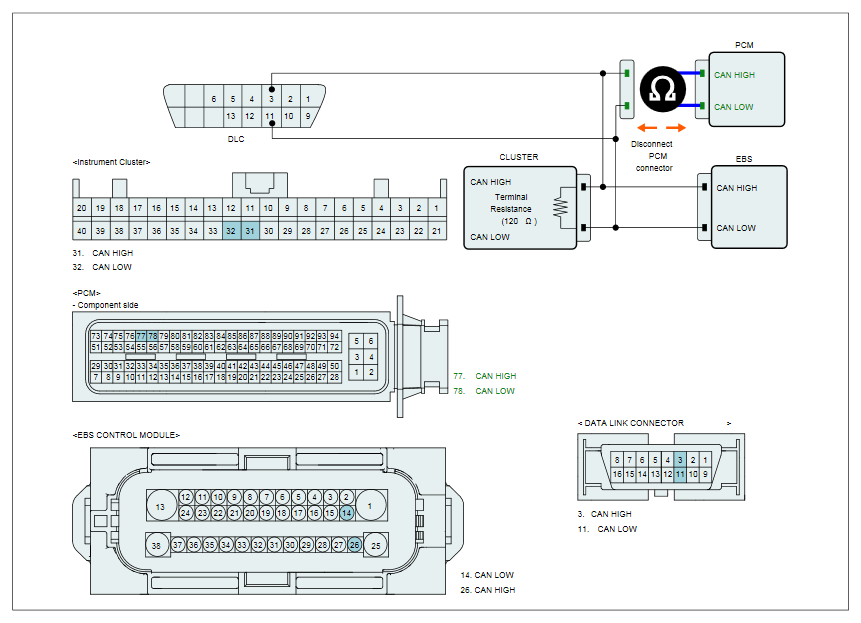

- Measure resistance between High signal terminal and Low signal terminal of PCM connector (PCM side).
Specification: Approx. 110~130Ω
- Is resistance within the specification?
YES
- Check for poor connection between PCM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Check PCM for contamination, deterioration, or damage. Substitute with a known-good PCM and check for proper operation. If the problem is corrected, replace PCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
