Injection System Inspection

WARNING: This page is about a different variant/trim than selected.

Measure resistance between control terminal and power terminal of the injector connector. (Component side)

Specification

Temp.(°C)	Temp.(°F)	Resistance (Ω)
20	68	13.8~15.2

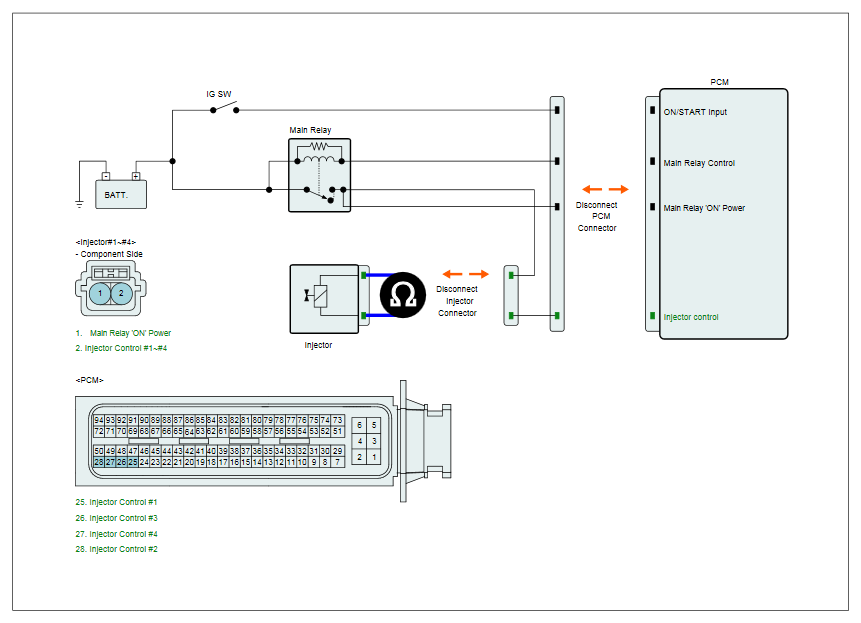

Fig 1: Measuring Resistance Between Control Terminal And Power Terminal Of Injector Connector (Component Side)

Courtesy of HYUNDAI MOTOR AMERICA

Is resistance within the specification?
YES
- Go to next step as below.
NO
- Check injector for contamination, deterioration, or damage. Substitute with a known-good injector and check for proper operation. If the problem is corrected, replace injector and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
