Power Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

■ Check for Short to Ground in Power Circuit

  1. IG KEY OFF.
  2. Disconnect PCM and APS harness connector.
  3. Measure resistance between APS2 power terminal of APS harness connector and chassis ground.

    Specification:  Infinite

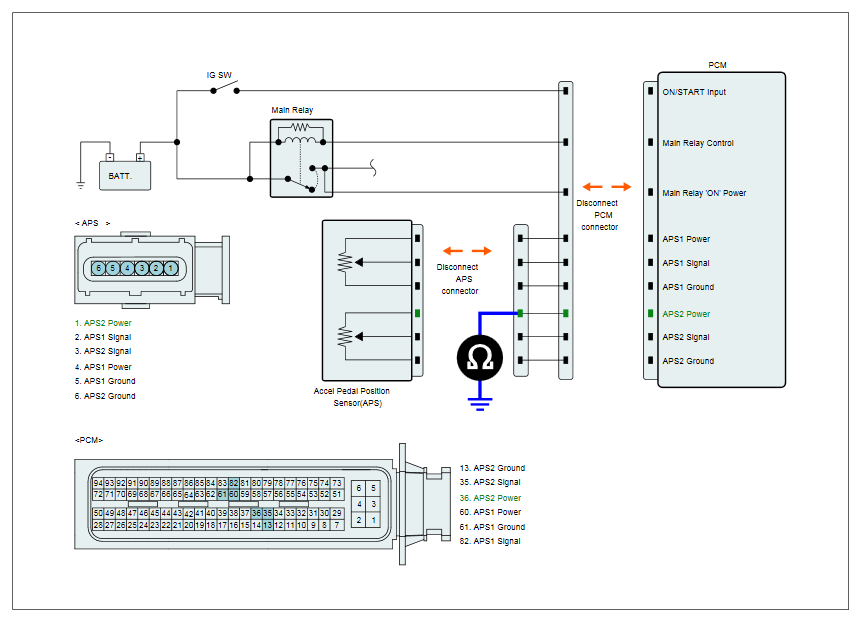

    Fig 1: Measuring Resistance Between APS2 Power Terminal Of APS Harness Connector And Chassis Ground
    G10606902Courtesy of HYUNDAI MOTOR AMERICA
  4. Is resistance within specification?

    YES

    • Go to next procedure.

    NO

■ Check for Open in Power circuit

  1. IG KEY OFF.
  2. Disconnect APS harness connector.
  3. IG KEY ON.
  4. Measure voltage between APS2 power terminal of APS harness connector and chassis ground.

    Specification:  Approx. 5V

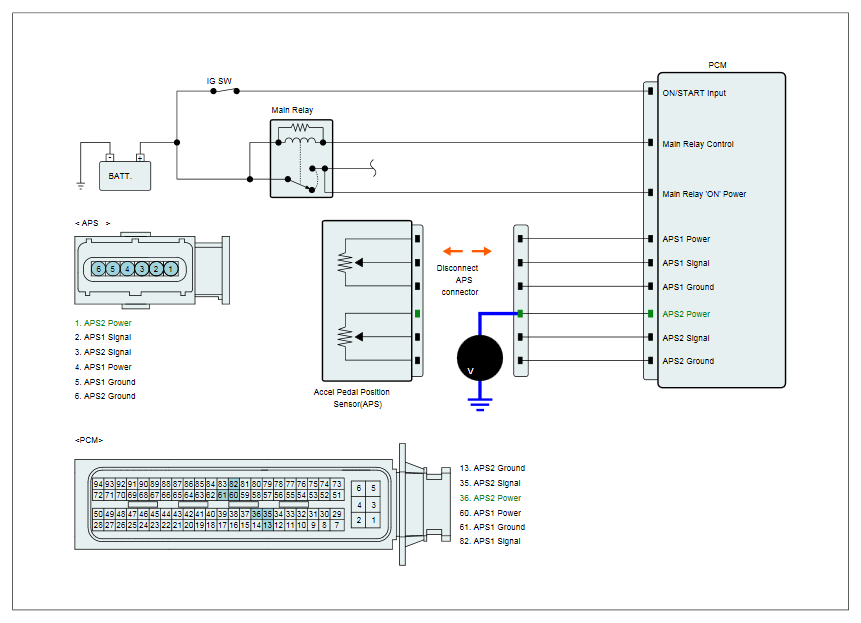

    Fig 2: Measuring Voltage Between APS2 Power Terminal Of APS Harness Connector And Chassis Ground
    G10606903Courtesy of HYUNDAI MOTOR AMERICA
  5. Is voltage within specification?

    YES

    • Go to next procedure.

    NO
