Section 57 (Engine Control System Diagnosis (2 Of 2) (HEV))
>>
DTC P2127: Throttle/Pedal Position Sensor/Switch 'E' Circuit Low Input
>>
General Information
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

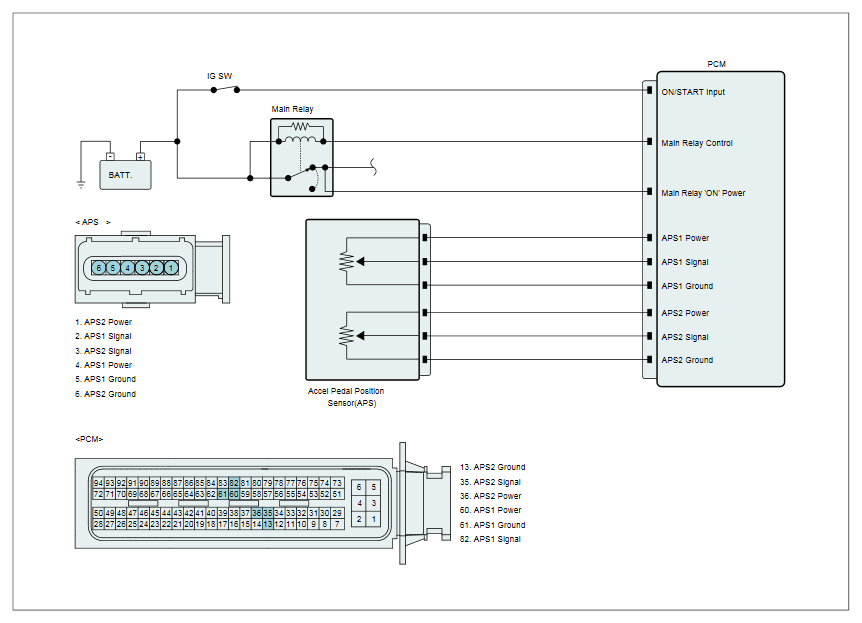

Fig 1: Accelerator Position Sensor Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
