Control Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
- Disconnect PCM harness connector.

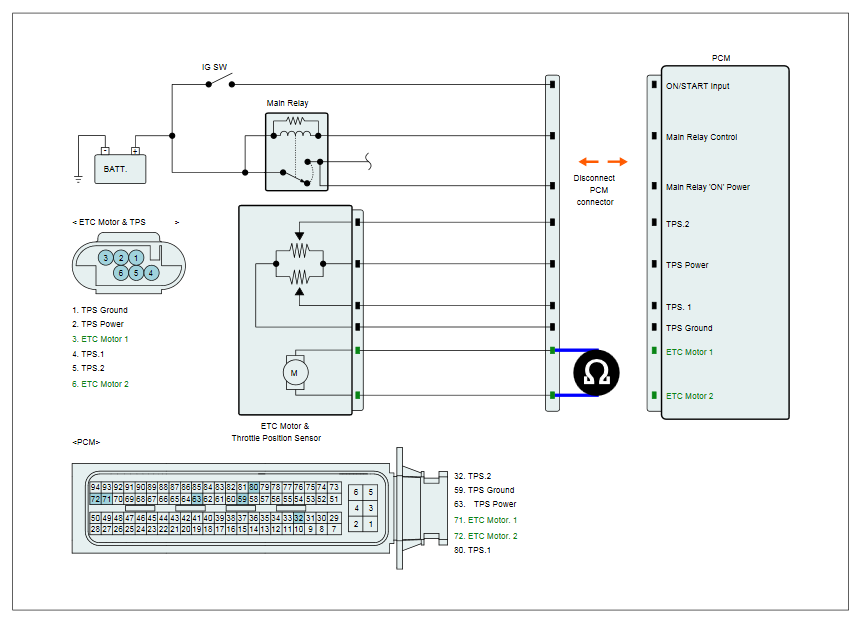

- Measure resistance between 'etc. output 1' terminal and 'etc. output 2' terminal of PCM harness connector.
Specification: Approx. 1.2 ~ 1.8Ω (20°C/68°F)
- Is resistance within specification?
YES
- Go to next procedure.
NO
- Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
