etc. Output 1 Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

■ Check for Short to Ground in etc. Output 1 Circuit

IG KEY OFF.
Disconnect etc. Connector.
Measure resistance between etc. Output 1 terminal of etc. harness connector and chassis ground.
Specification: Infinite

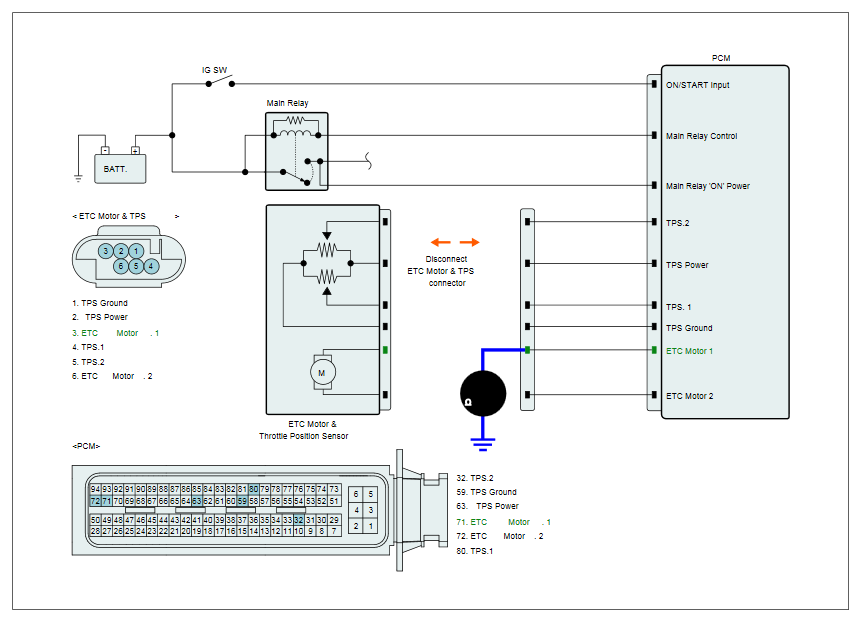

Fig 1: Measuring Resistance Between etc. Output 1 Terminal Of etc. Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR AMERICA
Is resistance within specification?
YES
- Go to next procedure.
NO
- Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

■ Check for Short to Power in etc. Output 1 Circuit

IG KEY OFF.
Disconnect etc. connector.
IG KEY ON.
Measure voltage between etc. Output 1 terminal of etc. harness connector and chassis ground.
Specification: Approx. 0 V

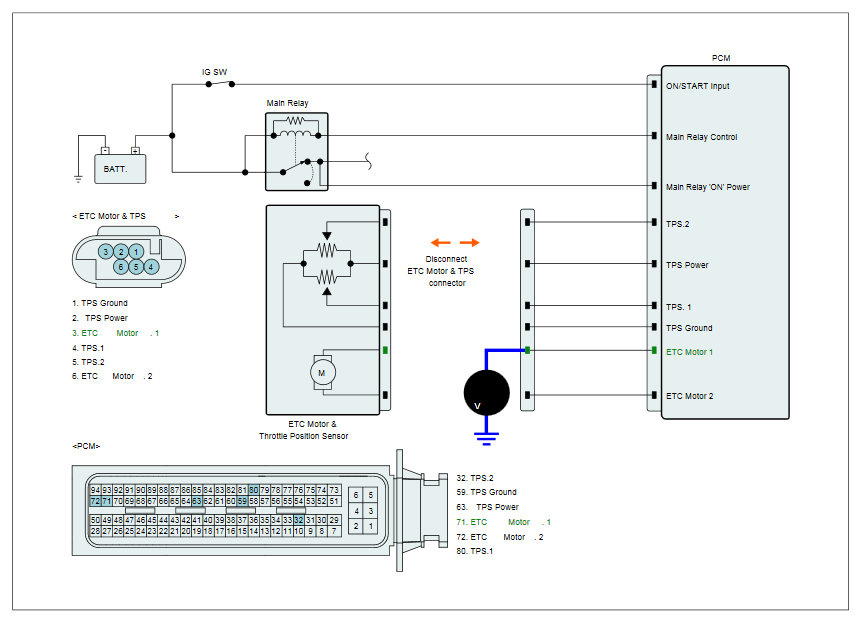

Fig 2: Measuring Voltage Between etc. Output 1 Terminal Of etc. Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR AMERICA
Is voltage within specification?
YES
- Go to next procedure.
NO
- Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

■ Check for Open in etc. Output 1 Circuit

IG KEY OFF.
Disconnect etc. harness connector and PCM harness connector.
Measure resistance between both ends of etc. Output 1 line.
Specification: Below 1Ω.

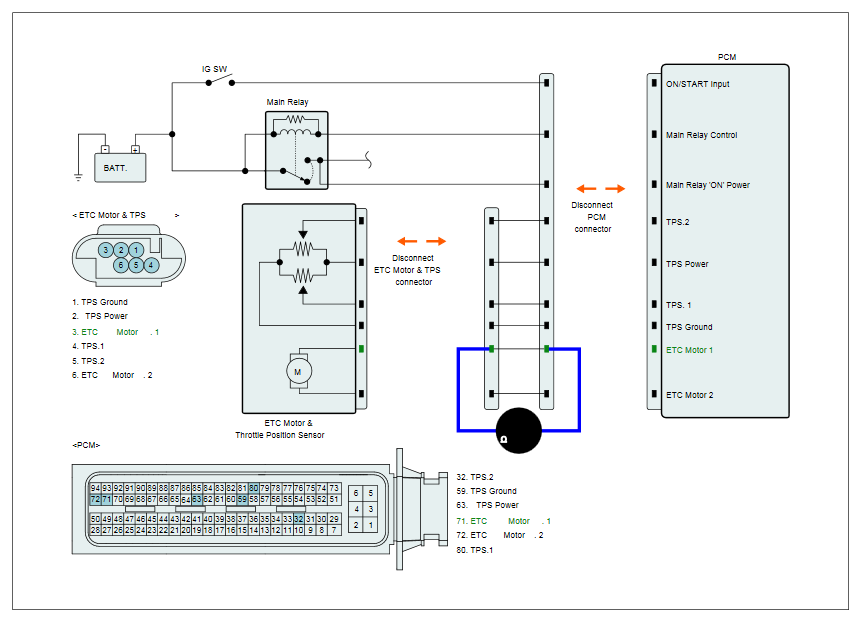

Fig 3: Measuring Resistance Between Both Ends Of etc. Output 1 Line
Courtesy of HYUNDAI MOTOR AMERICA
Is resistance within specification?
YES
- Go to next procedure.
NO
- Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
