Signal Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

■ Check for Short to Ground in Signal Circuit

  1. IG KEY OFF.
  2. Disconnect PCM and A/C pressure sensor harness connector.
  3. Measure resistance between signal terminal of A/C pressure S. harness connector and chassis ground.

    Specification:  Infinite

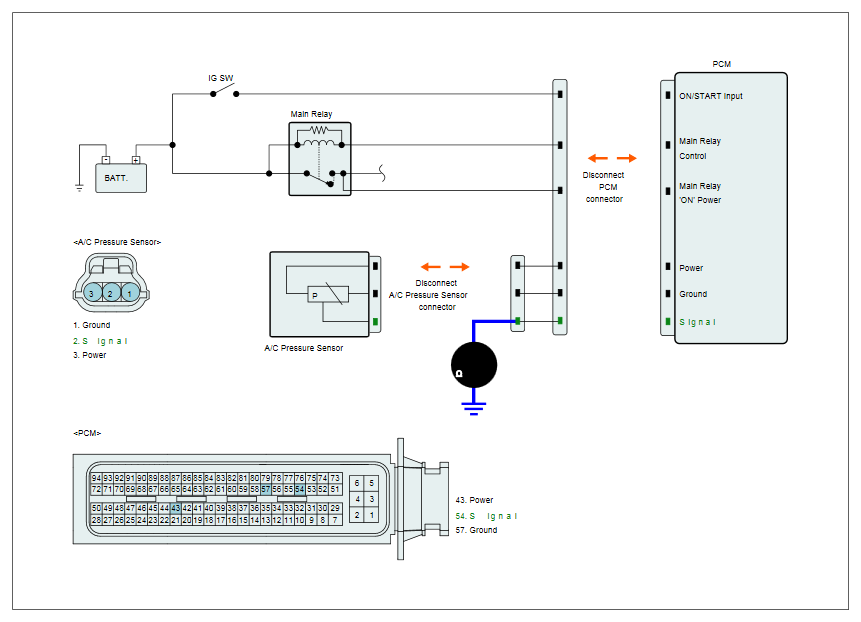

    Fig 1: Measuring Resistance Between Signal Terminal Of A/C Pressure Sensor Harness Connector And Chassis Ground
    G10606754Courtesy of HYUNDAI MOTOR AMERICA
  4. Is resistance within specification?

    YES

    • Go to next procedure.

    NO

■ Check for Open in Signal Circuit

  1. IG KEY OFF.
  2. Disconnect A/C pressure sensor harness connector.
  3. Measure resistance between both ends of signal line.

    Specification:  Below 1Ω

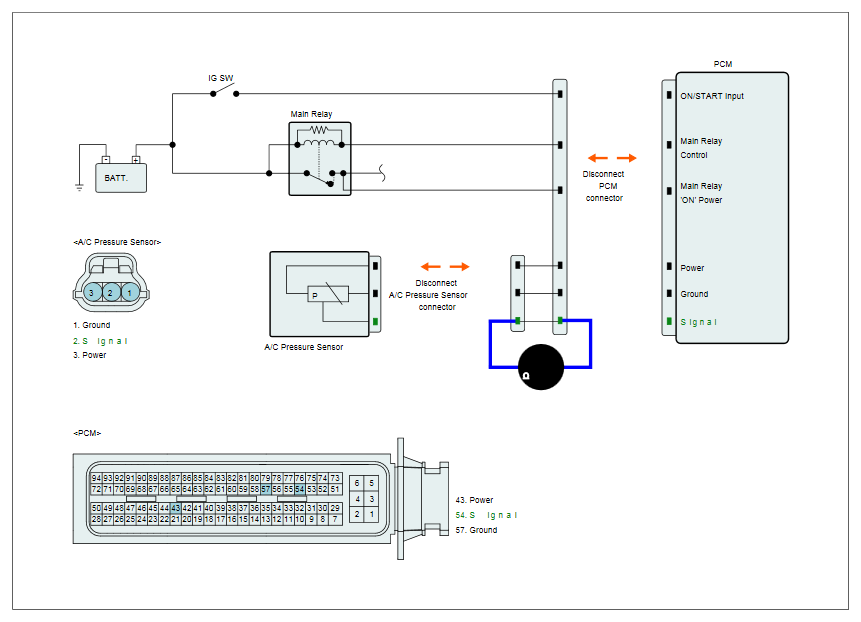

    Fig 2: Measuring Resistance Between Both Ends Of Signal Line
    G10606755Courtesy of HYUNDAI MOTOR AMERICA
  4. Is resistance within specification?

    YES

    • Go to next procedure.

    NO
